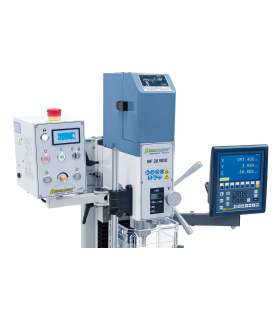

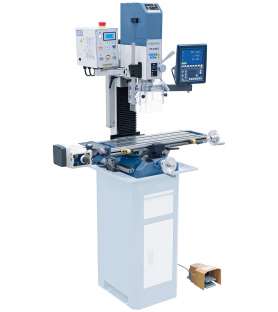

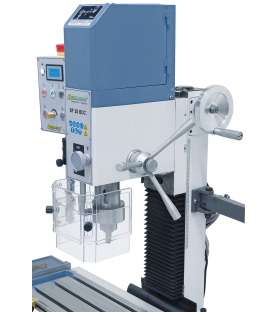

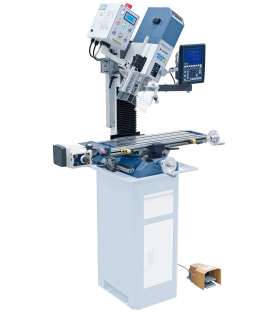

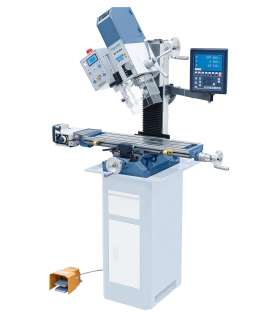

General description of the Bernardo BF28BDC drilling and milling machine with feed and 3-axis digital display :

• Milling head swivels on both sides for corner drilling, chamfer milling, etc.
• Adjustable speed with variator to adapt to the room
• Multiple possible uses: mortising, surfacing, reaming, etc.

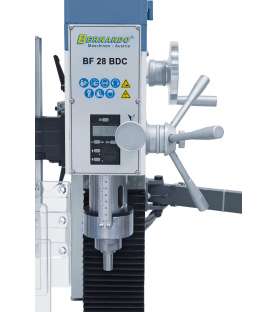

• Standard with digital indicator of drilling speed and depth
• Standard foot pedal to change the direction of rotation during threading

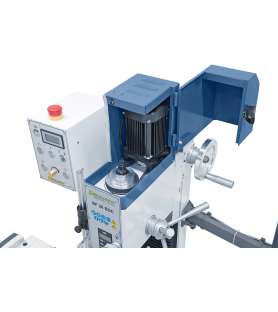

• DC motor for torque optimization at low speeds
• Dovetail guidance in x, y and z, adjustable by adjusting wedge
• High concentricity (≤0.015 mm) of the spindle by precision bearings

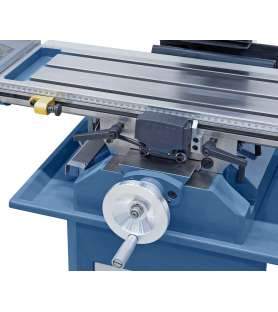

• Largely dimensioned cross table with precision surface and T-slots
• Spindle lowering and raising by lever, precision adjustment by crank

The Bernardo BF28BDC drilling and milling machine with feed and 3-axis digital display is delivered with :

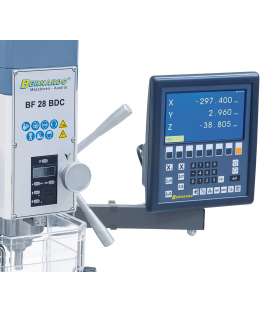

• 3-axis digital indicator ES-12 V with LCD screen

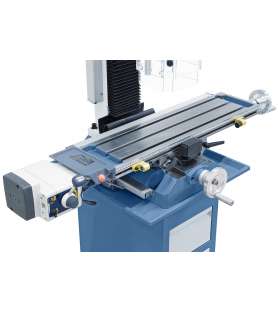

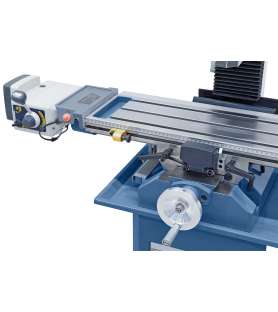

• AL 280 D automatic table feed for x axis
• Keyed chuck 3 - 16 mm / B 16
• Chuck mounting shaft CM 3 / B 16
• Tie rod M 12
• Digital speed indicator
• Digital drilling depth indicator
• CE standard EMC filter
• Height adjustable protector

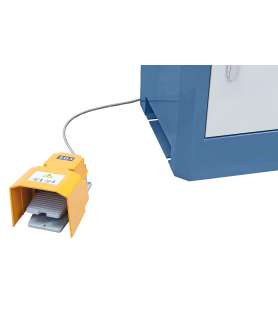

• Pedal
• Tapping device
• Service tools

Technical characteristics of the Bernardo BF28BDC drilling and milling machine with feed and 3-axis digital display :

• Steel drilling capacity: 28 mm
• Maximum surfacing capacity: 63 mm
• Maximum milling capacity: 20 mm
• Maximum thread: M 12
• Swan neck: 175 mm
• Mini/max spindle/table distance: 75 – 365 mm
• Spindle travel: 67 mm
• Spindle speed, variable: 100 – 1500 / 200 – 3000 rpm
• Spindle taper: CM 3
• Table dimensions: 700 x 180 mm
• Stroke (x/y): 500 / 215 mm
• Adjustable milling head: -90° to +90°
• Milling head height adjustment: 290 mm
• T-slot dimensions: 12 mm
• Continuous power S1 100%: 0.75 kW / 230 V
• S6 power 40%: 1.1 kW / 230 V
• Machine dimensions (L x D x H)*: 970 x 605 x 1040 mm
• Weight (approx.): 130 kg
• * without base

The machine is delivered without the base which is optional!
