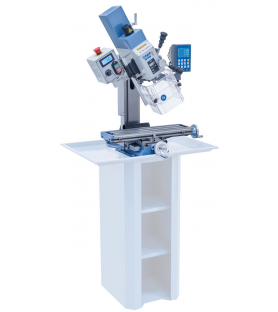

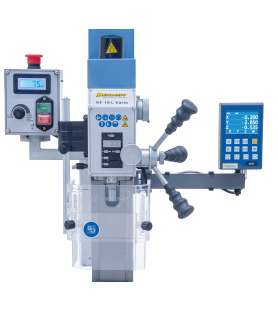

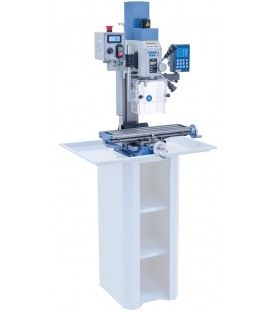

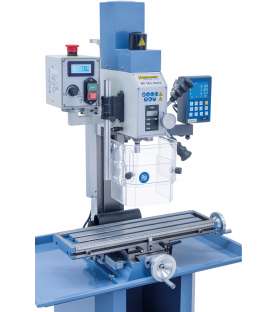

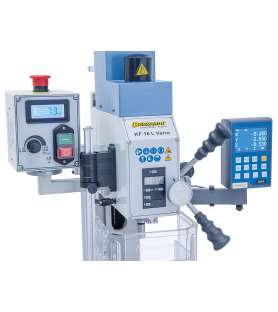

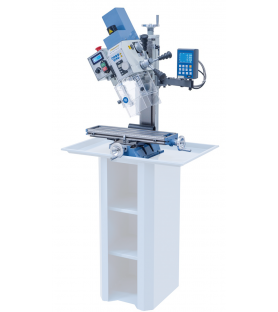

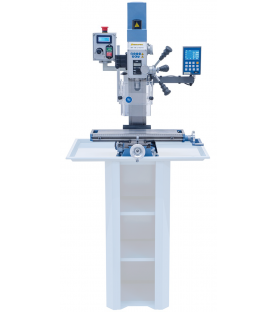

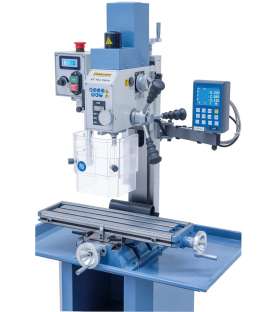

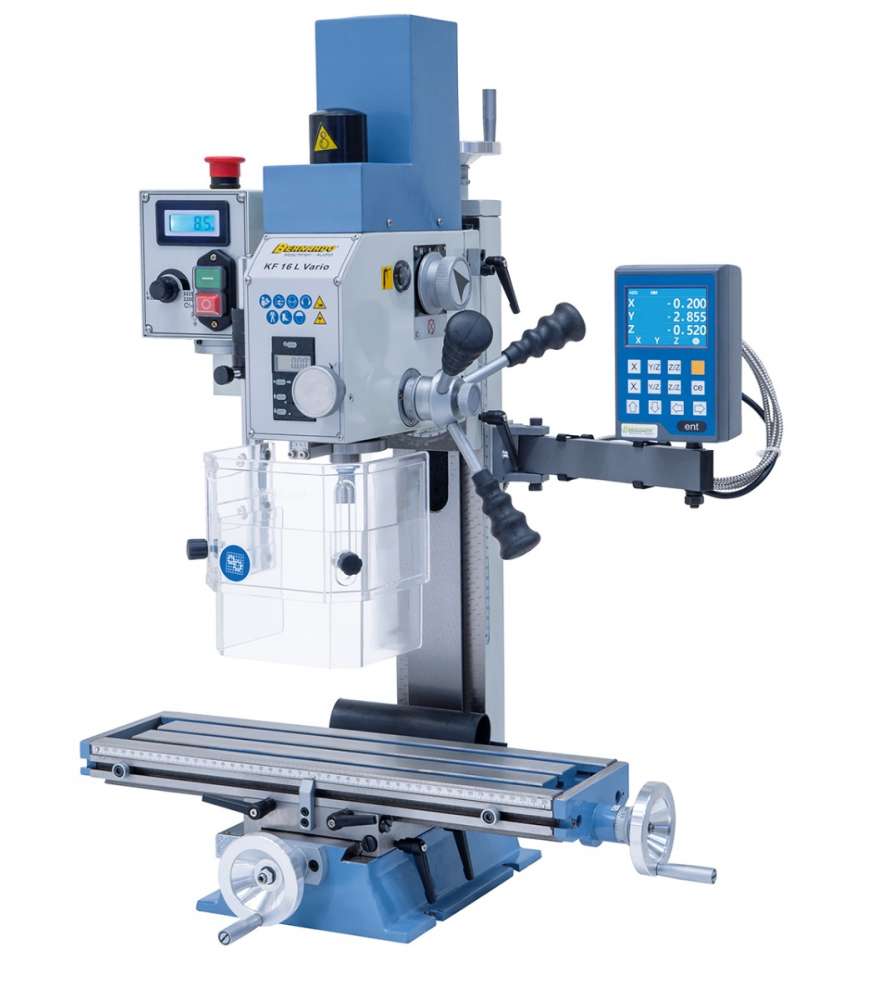

Metal drilling machine Bernardo KF16L Vario with 3-axis digital display DT40

1,895.00 € Tax included

Including €2.50 for ecotax

Reference: BKF16LVARIO3x

Very compact, the small KF 16 L Vario drilling-milling machine is fitted as standard with a digital display of rotation speed and spindle depth. This model is appreciated by precision mechanics and demanding model makers

Quantity
Delivery time 12-15 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The Bernardo KF16L Vario metal drilling milling machine is an ideal machine for tapping, grooving, mortising and more.

Its rectified gears allow silent operation and therefore provide comfortable use of the machine!

Advantages of the Bernardo KF16L Vario metal milling machine:

  • Cast iron frame, stable and vibration-free
  • DC motor for torque optimization at low speeds
  • Dovetail guide adjustable in x, y and z axes
  • Rotation speed variator 50 - 1125 / 100 - 2250 rpm
  • Milling head rotatable on both sides, from -90° to +90°
  • Quiet operation thanks to ground gears

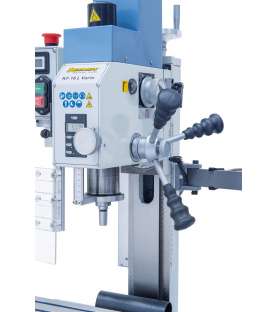

  • Precise positioning of the milling spindle by handwheel

Technical characteristics of the Bernardo KF16L Vario metal milling machine:

  • Steel drilling capacity: 16 mm
  • Maximum surfacing capacity: 50 mm
  • Maximum milling capacity: 16 mm
  • Gooseneck: 170 mm
  • Distance spindle / table max. : 275mm
  • Spindle stroke: 50 mm
  • Spindle speed, variable: 50 - 1125 / 100 - 2250 rpm
  • Spindle taper: CM 2

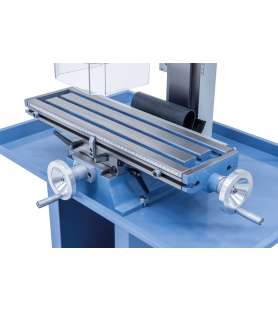

  • Table dimensions: 500 x 140 mm
  • Stroke (x/y): 365 / 140 mm
  • Swivel milling head: -90° to +90°
  • Milling head height adjustment: 200 mm
  • Dimensions T-slots: 10 mm
  • Continuous power S1 100%: 0.50 kW / 230 V
  • Power S6 40%: 0.80 kW / 230 V
  • Machine dimensions (W x D x H)*: 610 x 500 x 820 mm
  • Weight (approx.): 65 kg

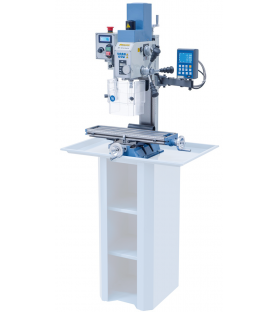

  • * delivered without base

The Bernardo KF16L Vario metal milling machine comes with:

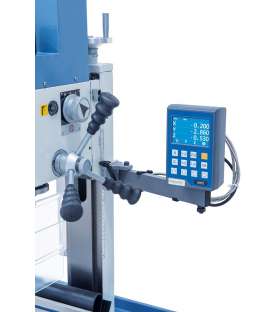

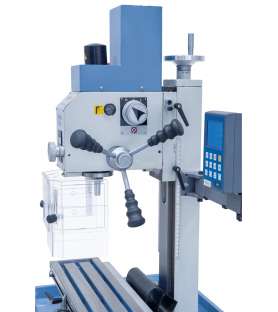

  • DT 40 3-axis digital indicator
  • Tie rod M 10
  • Digital depth indicator
  • Digital speed indicator
  • Chuck mounting shaft CM 2 / B 16
  • CE standard EMC filter
  • Height adjustable protector
  • Service tools
