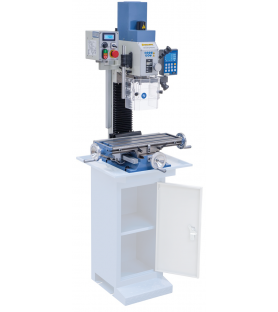

Bernardo KF25D Vario metal drilling and milling machine with 3-axis digital display - 230V

2,295.00 € Tax included

Including €2.50 for ecotax

Reference: BKF25DVARIO3ax

The KF 25 D Vario is fitted as standard with a digital speed and travel depth indicator.

Quantity
Delivery time 12-15 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The Bernardo KF25D Vario metal milling drill is designed for tapping, grooving, slotting or other.

It will be suitable for professional users, for model making and in learning workshops.

Advantages of the Bernardo KF25D Vario drill milling machine:

  • Multiple possible uses: tapping, grooving, slotting, etc.
  • As standard with reversal of the direction of rotation for tapping
  • Ergonomic arrangement of the control elements
  • Massive cross table with easy to read scale
  • Rotation speed variator to adapt to the room
  • 2-stage gearbox for optimum torque transmission
  • Excellent spindle rotational concentricity ensured by tapered bearings (≤ 0.015 mm)
  • Milling head can be swiveled on both sides for angle drilling, chamfer milling, etc.
  • Standard with digital speed and spindle depth indicators
  • Dovetail guidance in x, y and z, adjustable by adjusting wedge
  • Spindle lowering and raising by lever, precision adjustment by crank
  • With EMC filter; protects electrical devices against electromagnetic interference

Technical characteristics of the Bernardo KF25D Vario drilling milling machine:

  • Steel drilling capacity: 20 mm
  • Max surfacing capacity: 63 mm
  • Maximum milling capacity: 20 mm
  • Gooseneck: 170 mm
  • Spindle distance / mini/maxi table: 45 / 325 mm
  • Spindle stroke: 52 mm
  • Spindle speed, variable: 50 - 1125 / 100 - 2250 rpm
  • Spindle taper: CM 2
  • Table dimensions: 500 x 180 mm
  • Stroke (x/y): 305 / 150 mm
  • Swivel milling head: -90° to +90°
  • Milling head height adjustment: 275 mm
  • Dimensions T-slots: 12 mm
  • Continuous power S1 100%: 0.60 kW / 230 V
  • Power S6 40%: 0.90 kW / 230 V
  • Machine dimensions (W x D x H)*: 750 x 560 x 930 mm
  • Weight (approx.): 110 kg
  • * without base

The Bernardo KF25D Vario drilling and milling machine comes with :

  • DT 40 3-axis digital indicator
  • Chuck mounting shaft CM 2 / B 16
  • Tie rod
  • Digital depth indicator
  • Digital speed indicator
  • CE standard EMC filter
  • Height adjustable protector
  • Service tools
Optional stand
