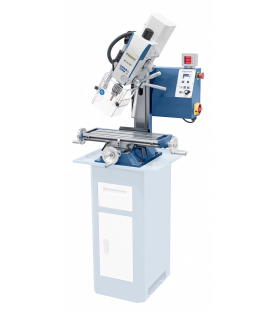

General description of the Bernardo KF18Top metal milling machine with 3-axis digital display:

• Wide speed range 50 - 3000 rpm, optimum torque transmission via 2-speed gearbox
• Adjustable speed with variator to adapt to the room
• Model also available with DT 30 3-axis position display
• Generously dimensioned cross table with precision surface and T-slots
• Multiple possible uses: mortising, surfacing, boring, etc.
• DC motor for torque optimization at low speeds
• Milling head can be swiveled on both sides for corner drilling, chamfer milling, etc.
• With EMC filter, protects electrical devices against electromagnetic interference
• As standard with reversal of the direction of rotation for tapping
• Excellent spindle rotational concentricity ensured by tapered bearings (≤ 0.015 mm)
• Dovetail guidance in x, y and z, adjustable by adjusting wedge
• Spindle lowering and raising by lever, precision adjustment by crank

The Bernardo KF18Top metal milling machine with 3-axis digital display comes with:

• DT 30 3-axis digital indicator
• Key chuck 3 - 16 mm / B 16
• Chuck mounting shaft CM 2 / B 16
• Tie rod M 10
• LED lighting
• Digital depth indicator
• Digital speed indicator
• CE standard EMC filter
• Height adjustable protector
• Energy cable
• Service tools

Technical characteristics of the Bernardo KF18Top metal milling machine with 3-axis digital display:

• Steel drilling capacity: 18 mm
• Max surfacing capacity: 63 mm
• Maximum milling capacity: 20 mm
• Gooseneck: 195 mm
• Spindle distance / mini/maxi table: 110/280 mm
• Spindle stroke: 52 mm
• Spindle speed, variable: 50 - 1500/100 - 3000 rpm
• Spindle taper: CM 2
• Table dimensions: 500 x 180 mm
• Stroke (x/y): 285 / 160 mm
• Swivel milling head: -90° to +90°
• Milling head height adjustment: 170 mm
• Dimensions T-slots: 12 mm
• Continuous power S1 100%: 0.50 kW / 230 V
• Power S6 40%: 0.80 kW / 230 V
• Machine dimensions (W x D x H)*: 740 x 640 x 850 mm
• Weight (approx.): 95 kg
• * without base
