Metal drilling milling machine Bernardo KF26L Top with automatic feed

2,195.00 € Tax included

Including €2.50 for ecotax

Reference: BKF26LTOPAV

The Bernardo KF 26 L Top metal drilling and milling machine with automatic feed is equipped with a DC motor. The advantages are a high torque in the low speed ranges and an almost constant speed under load.

Quantity
Delivery time 12-15 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

General description of the Bernardo KF26L Top metal milling machine with automatic feed :

  • Wide speed range 60 - 2700 rpm, optimum torque transmission via 2-speed gearbox
  • Adjustable speed with variator to adapt to the room
  • Model also available with variable table feed and DT 40 3-axis position display
  • Generously dimensioned cross table with precision surface and T-slots
  • Multiple possible uses: mortising, surfacing, boring, etc.
  • DC motor for torque optimization at low speeds
  • Milling head can be swiveled on both sides for corner drilling, chamfer milling, etc.
  • With EMC filter, protects electrical devices against electromagnetic interference
  • As standard with reversal of the direction of rotation for tapping
  • Excellent spindle rotational concentricity ensured by tapered bearings (≤ 0.015 mm)
  • Dovetail guidance in x, y and z, adjustable by adjusting wedge
  • Spindle lowering and raising by lever, precision adjustment by crank

The Bernardo KF26L Top metal milling machine with automatic feed comes with :

  • Key chuck 3 - 16 mm / B 16
  • Chuck mounting shaft CM 2 / B 16
  • Tie rod

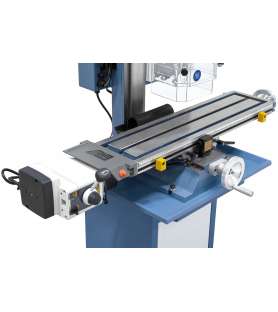

  • Feedrate on the x axis
  • LED lighting
  • Digital depth indicator
  • Digital speed indicator
  • CE standard EMC filter
  • Height adjustable protector
  • Energy cable
  • Service tools

Technical characteristics of the Bernardo KF 26 L Top metal milling machine with automatic feed :

  • Steel drilling capacity: 20 mm
  • Max surfacing capacity: 63 mm
  • Maximum milling capacity: 20 mm
  • Gooseneck: 190 mm
  • Spindle distance / min/max table: 95/270 mm
  • Spindle stroke: 54 mm
  • Spindle speed, variable: 60 - 1400/90 - 2700 rpm
  • Spindle taper: MK 2
  • Table dimensions: 700 x 180 mm
  • Stroke (x/y): 435 / 130 mm
  • Swivel milling head: -90° to +90°
  • Milling head height adjustment: 175 mm
  • Dimensions T-slots: 12 mm
  • Continuous power S1 100%: 0.60 kW / 230 V
  • Power S6 40%: 0.90 kW / 230 V
  • Machine dimensions (W x D x H)*: 940 x 660 x 840 mm
  • Weight (approx.): 112 kg

PLEASE NOTE : delivered without the base!
