General description of the Bernardo HBS460N band saw:

• Dynamically balanced flywheels for quiet operation
• V-belt adjustable cutting speed depending on the workpiece
• Cutting height adjustment by crank with reading on graduation in mm
• Table with ground surface and T-slot for miter gauge mounting
• Easy tape replacement with quick release lever at the back
• Precision longitudinal guide in aluminum, removable in all positions
• Window on the front to check the tape tension

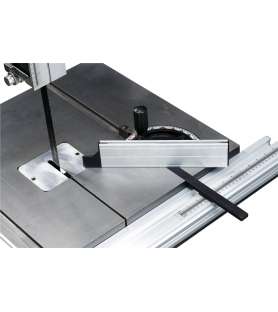

• Large gray cast iron table tiltable from -5 ° to + 45 °
• Powerful motor for cutting large blocks and beams

Technical characteristics of the Bernardo HBS460N band saw:

• Cutting width: 465 mm
• Cutting height: 280 mm
• Ribbon length: 3607 mm
• Cutting speed: 420/840 m / min
• Table dimensions: 480 x 630 mm
• Table height: 970 mm
• Table tilt: -5 ° to 45 °
• ø suction nozzle: 2x 100 mm
• S1 continuous power 100%: 2.2 kW (3.0 hp)
• Power S6 40%: 3.0 kW (4.0 hp)
• Voltage: 400V
• Weight (approx.): 162 kg

The Bernardo HBS460N band saw is delivered with:

• Blade
• Longitudinal guide with magnifying glass
• Miter guide
• Aluminum drive wheels
