The Bernardo HBS400N band saw is equipped with 2 speeds as standard.

This machine also allows you to quickly change the saw blade using the quick release lever.

General description of the Bernado HBS400N band saw:

• Dynamically balanced wheels ensure smooth operation
• The cutting speed can be adjusted to the respective workpiece using a V-belt
• The desired cutting height is set with a handwheel and can be read on the scale in mm
• Worktable with floor space and T-slot for miter gauge
• The saw blade is easy to change using the quick release lever on the back
• Precisely guided longitudinal stop in aluminum, removable in all positions
• Front viewing window makes it easy to read belt tension
• Large saw table in gray cast iron, swiveling from -5 ° to + 45 °
• Powerful drive motor also allows processing of larger blocks and beams

Technical characteristics of the Bernardo HBS400N band saw:

• Cutting width: 410 mm
• Cutting height: 260 millimeters
• Saw blade dimension: 3345 x 25 x 0.6 at 3 tpi
• Saw blade widths: 9.5 to 37 mm
• Cutting speed: 420/840 m / min
• Table dimensions: 450 x 560 millimeters
• Table height: 890 millimeters
• Tilt of the saw table: -5 to + 45 °
• Suction connection Ø: 2x 100 mm
• Motor output power S1 100%: 2.2 kW (3.0 PS)
• Power consumption of the motor S6 40%: 3.0 kW (4.0 PS)
• voltage: 400V
• Machine dimensions (W x D x H): 875 x 740 x 1740 mm
• Weight approx. : 132 kilograms

The Bernardo HBS400N band saw is delivered with:

• Band saw blade
• Slitting guide with magnifying glass
• Miter guide
• Aluminum flywheels
• Guide of the ball band saw blade

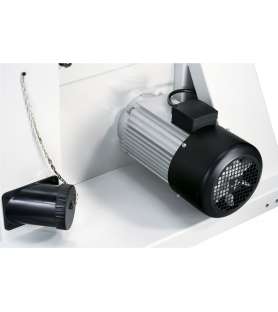

• Motor incl. brake
• Pusher
• Tools
