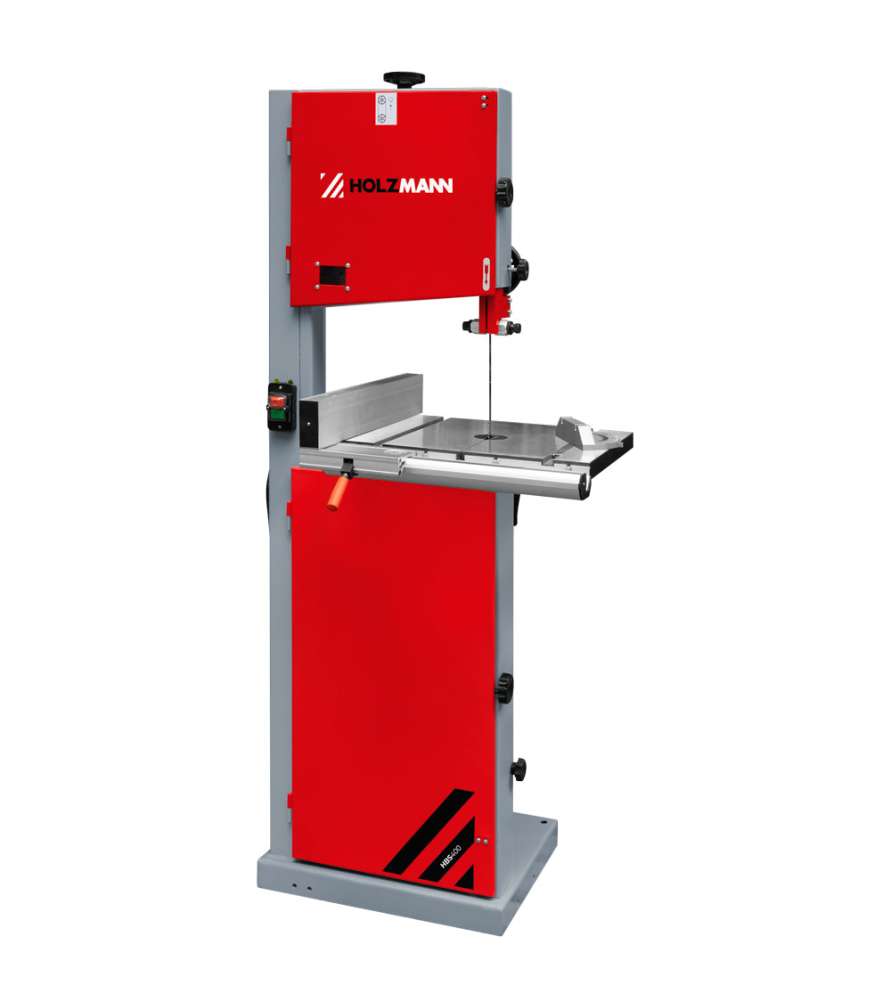

This Holzmann HBS400 band saw has a powerful asynchronous, quiet and quiet motor.

This machine is equipped with many other options such as a robust cast iron table tilting from 0 to 45 °.

The advantages of the Holzmann HBS400 band saw:

• Mechanically welded frame, rigid and robust.
• Drilled base for fixing the machine to the ground.
• Cast iron table tilting from 0 to 45 °.
• Large aluminum table cradle.
• Double rack cradle.
• Upper and lower roller blade guide, rack-mounted upper blade guide and crank height adjustment.
• Adjusting blade tension by a crank.
• Quick release handle for the blade.
• View window for centering the blade.

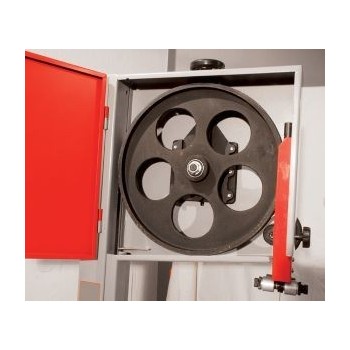

• 2 flywheels ø 400 mm covered with a rubber band.
• Cleaning brush on the lower steering wheel, allowing the blade to have a good grip.
• Longitudinal cutting guide with reading magnifying glass for the graduation and quick clamping handle, graduation on each side of the blade.
• Adjustable tab guide, positioned to the right of the blade.
• Security contactor on each door.

Delivery with: 1 ribbon blade + angle guide and precision stop.

Technical specifications of the Holzmann HBS400 band saw:

• Cutting width: 380 mm
• Cutting height: 220 mm
• Cutting speed: 10 m / sec
• Table dimensions: 500 x 395 mm
• Wheel diameter: 400 mm
• Ribbon length: 2950 mm
• Tilting of the table: 0 - 45 °
• Height of the machine: 175 cm
• Engine power: 1.5 KW - 400V
• Suction nozzle: 100 mm
• Weight: about 145 Kg

Click here for the user manual
