Bandsaw Holzmann HBS470 Profi - 400V

1,595.00 € Tax included

Including €2.50 for ecotax

Reference: HBS470PROFI-400V

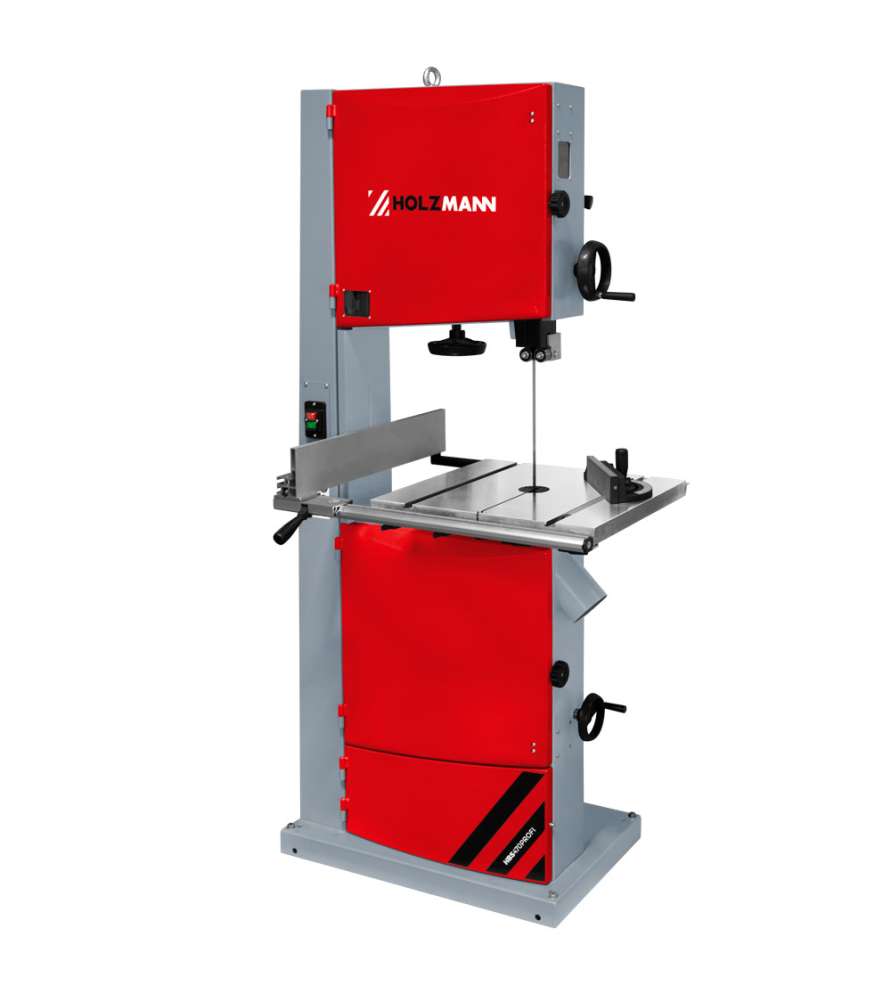

The Holzmann HBS470Profi band saw offers a high cutting height of 285 mm, 470 mm cast iron wheels, 1500 W motor available in single or three phase.

Quantity
Factory Shipping, delivery time 7-10 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

This Holzmann HBS470 Profi band saw is a robust and powerful machine ideal for the DIYer and the discerning hobbyist!

This machine has a powerful, durable and silent asynchronous motor and many other options!

The advantages of the Holzmann HBS470 Profi band saw:

  • Mechanically welded, rigid and robust frame.
  • Pierced base allowing the machine to be fixed to the ground.
  • Cast iron saw table tilting from -10 to +45°.
  • Wide aluminum table cradle.
  • Double rack table cradle.
  • Upper and lower blade guide with bearings.
  • Blade tension adjustment by a crank with scale readable from the outside.
  • Blade quick release lever.
  • 2 flywheels ø 475 mm in cast iron covered with a rubber band
  • 2 cutting speeds by changing the position of the belt depending on the wood/steel parts to be cut.
  • Longitudinal cutting guide with reading magnifying glass for graduation and quick-release handle, graduation on each side of the blade.
  • Adjustable miter fence from -60° to +60.
  • Safety switch on each door.

Technical data of the Holzmann HBS470 Profi band saw:

  • Cutting width: 465mm
  • Cutting height: 285mm
  • 2 cutting speeds: 380 and 820 m/min
  • Dimensions of the table: 530 x 480 mm
  • Steering wheel diameter: 475 mm
  • Ribbon length: 3454 mm - Width: 6 to 25 mm
  • Table tilt: 0 - 45°
  • 400V motor power: 1500 W
  • Suction nozzle: 100 mm
  • Weight: about 162 Kg

Important Probois recommendation for many woodworking machines:

  • Before starting, always check the inside of your machine, see if the belts are fitted correctly, tighten the bolts, grease the tables, etc... because the various transports cause vibrations.
  • Always use a 2.5² wire size extension cord
  • The extension cord must not exceed 10 meters and must not be rolled up
  • The use of drums, triplets or multi-plugs is PROHIBITED
  • Provide an electric meter with special machine start fuses of at least 16A
  • Have a standard electricity meter with neutral and earth
  • Always work with a chip extractor for your health and for the guarantee of the machine
  • Always grease cast iron tables with wood glider
  • Always work with guards in place

IMPORTANT FOR THE DELIVERY AND COMMISSIONING OF XL MACHINES!

XL machines are shipped by 38 ton truck only. The place of delivery must imperatively be planned so that this type of truck can approach and maneuver easily. If access is only possible by 19-tonne truck (at least), we must be informed beforehand so that a solution can be found. If this incurs additional delivery charges, these will need to be paid prior to dispatch. Start-up: The prices do not include assembly or electrical installation, which must be done by a professional in order to avoid any damage to the motors and electrical circuits of the machine that the warranty cannot cover.
