Bandsaw HOLZPROFI HBS480 - 400V

2,795.00 € Tax included

Including €2.50 for ecotax

Reference: HJHBS480-400V

The HBS480 Holzprofi Band Saw is a robust, accurate machine with really interesting capabilities for the discerning and professional looking for large widths and cutting heights!

Quantity
Factory Shipping, delivery time 5-8 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

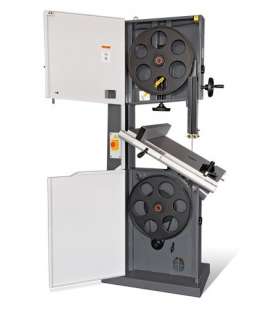

The HOLZPROFI HBS480 band saw has a carefully welded frame!

Its ultra-fast and efficient closing system with "machine stop" safety as soon as the crankcase is opened. Two 100 mm diameter nozzles allow suction connection even more efficient!

The main advantages of the HBS480 band saw:

  • Ruffles: They are made of balanced and machined cast iron, for excellent blade inertia and therefore a high transmission of effort, the remarkable performance that results and a silent operation. They are ball-bearing mounted and equipped with replaceable rubber gaskets. Two adjustable brushes continuously clean the lower handwheel and ribbon, preventing clogging.
  • The table: Generous table dimensions. Made of cast iron reinforced and tilting possible (from 0 to 45 °) by rack system. Adjustable parallel guide with front locking by handle. Particularly rigid, it is equipped with a magnifying glass. On the other hand a laser sighting system equips each model, to help sawing on tracks. An angular guide is delivered of origin.
  • Blade guide: It is carried out by 6 rolling rollers: 3 lower and 3 upper (and not just metal side keys). The upper guide is adjustable in height by rack. The changes and blade tensioning are carried out quickly lever system to retain the same settings previously made ..

Delivery with: miter guide, 1 series blade 25 mm wide, parallel guide.

Technical specifications of the HBS480 Holzprofi band saw:

  • Wheel diameter: 480 mm
  • Wheels width: 35 mm
  • Flying quality: Balanced cast iron
  • Cutting width: 462 mm
  • Cutting height: 300 mm
  • Blade speed m / min: 939 and 439
  • Ribbon width: 6 to 32 mm
  • Ribbon length: 3640 mm
  • Guiding: 3 upper and lower rollers
  • Dimensions of the table L x W: 640 x 480 mm
  • Inclination of the table ° 45
  • Aluminum parallel guide with reading magnifier
  • Working height: 950 mm
  • Dimensions of the machine W x W x H: 920 x 770 x 1990 mm
  • 400V motor power: 1.5 kW / 2 hp
  • Suction nozzle diameter: 2 X 100 mm
  • Weight kg: 203
  • Packing: 850 x 530 x 2100 mm / 215 Kg

HJHBS480-400V
