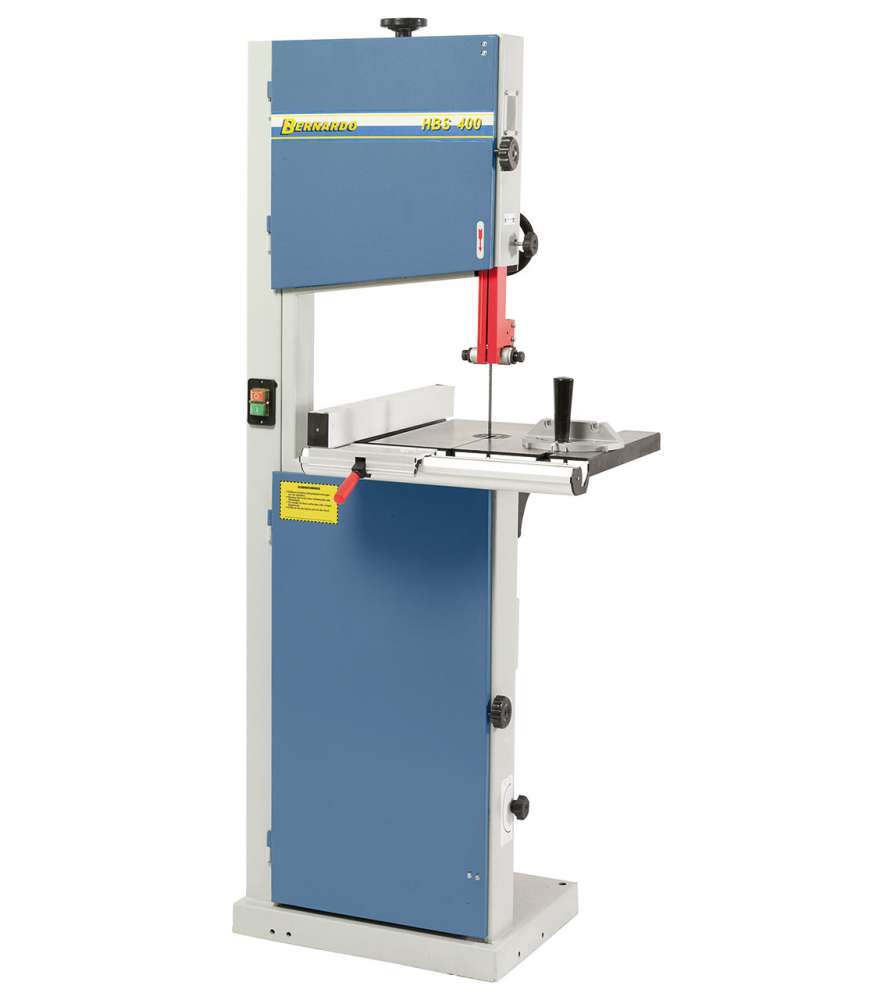

Bandsaw Bernardo HBS400 offers a beautiful cutting height of 220 mm, 400 mm in cast iron, 1500W motor flying...

General description :

Powerful, enduring, and quiet asynchronous motor.
Frame welded, rigid and robust.
Base drilled for fixing the machine to the ground.
Table saw cast-iron tilting from 0 to 45 °.
Large cradle of table in aluminium.
Double-cradle rack table.
Blade guide upper and lower roller upper blade guide by crank-mounted rack and adjustable in height.
Adjusting tension of the blade by a crank.
Quick relaxation of the blade lever.
Window watching for the centering of the blade.
2 steering wheels ø 400 mm coated of a rubber band.
Cleaning on the lower wheel brush, allowing the blade to have a good grip.
Guide to ripping with magnifying glass for reading for the graduation and quick clamping handle, graduation of each side of the blade.
Miter gauge adjustable, positioned to the right of the blade.
Safety on each door switch.

Technical characteristics :
Cutting width: 380 mm
Cutting height: 220 mm
Cutting speed: 600 m/min
Table dimensions: 500 x 410 mm
Steering wheel diameter: 400 mm
Tape length: 2950 mm
The table inclination: 0-45 °
Engine power: 1.5 KW - 400 V
Suction nozzle: 100 mm
Weight: approx. 145 kg

For this machine with single-phase motor, see Holzmann HBS400
