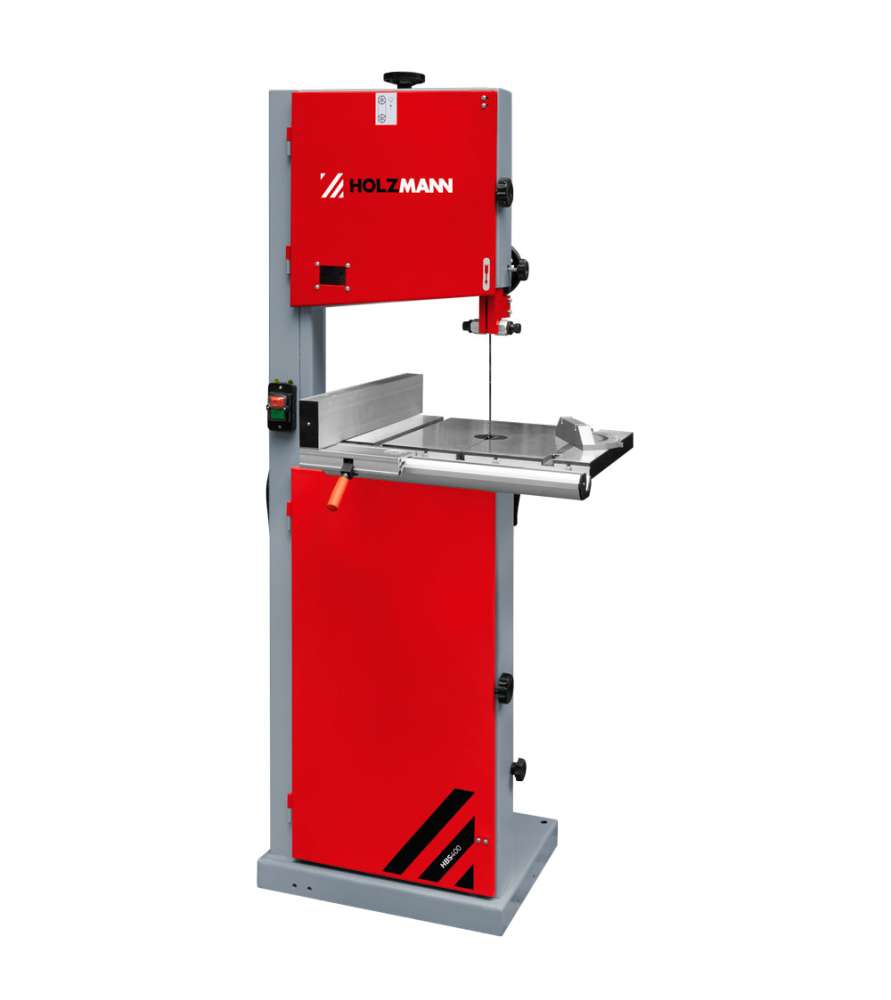

Bandsaw Holzmann HBS400 - 230V

1,235.00 € Tax included

Including €2.50 for ecotax

Reference: HBS400-230V

The Holzmann HBS400 band saw offers a cutting height of 220 mm, cast iron rims of 400 mm, 1500W motor ...

Quantity
In stock, delivery time 5-8 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

This Holzmann HBS400 band saw has a powerful asynchronous, quiet and quiet motor.

This machine is equipped with many other options such as a robust cast iron table tilting from 0 to 45 °.

The advantages of the Holzmann HBS400 band saw:

  • Mechanically welded frame, rigid and robust.
  • Drilled base for fixing the machine to the ground.
  • Cast iron table tilting from 0 to 45 °.
  • Large aluminum table cradle.
  • Double rack cradle.
  • Upper and lower roller blade guide, rack-mounted upper blade guide and crank height adjustment.
  • Adjusting blade tension by a crank.
  • Quick release handle for the blade.
  • View window for centering the blade.
  • 2 flywheels ø 400 mm covered with a rubber band.
  • Cleaning brush on the lower steering wheel, allowing the blade to have a good grip.
  • Longitudinal cutting guide with reading magnifying glass for the graduation and quick clamping handle, graduation on each side of the blade.
  • Adjustable tab guide, positioned to the right of the blade.
  • Security contactor on each door.

Delivery with: 1 ribbon blade + angle guide and precision stop.

Technical specifications of the Holzmann HBS400 band saw:

  • Cutting width: 380 mm
  • Cutting height: 220 mm
  • Cutting speed: 10 m / sec
  • Table dimensions: 500 x 395 mm
  • Wheel diameter: 400 mm
  • Ribbon length: 2950 mm
  • Tilting of the table: 0 - 45 °
  • Height of the machine: 175 cm
  • Engine power: 1.5 KW - 230V
  • Suction nozzle: 100 mm
  • Weight: about 145 Kg

Click here for the user manual
