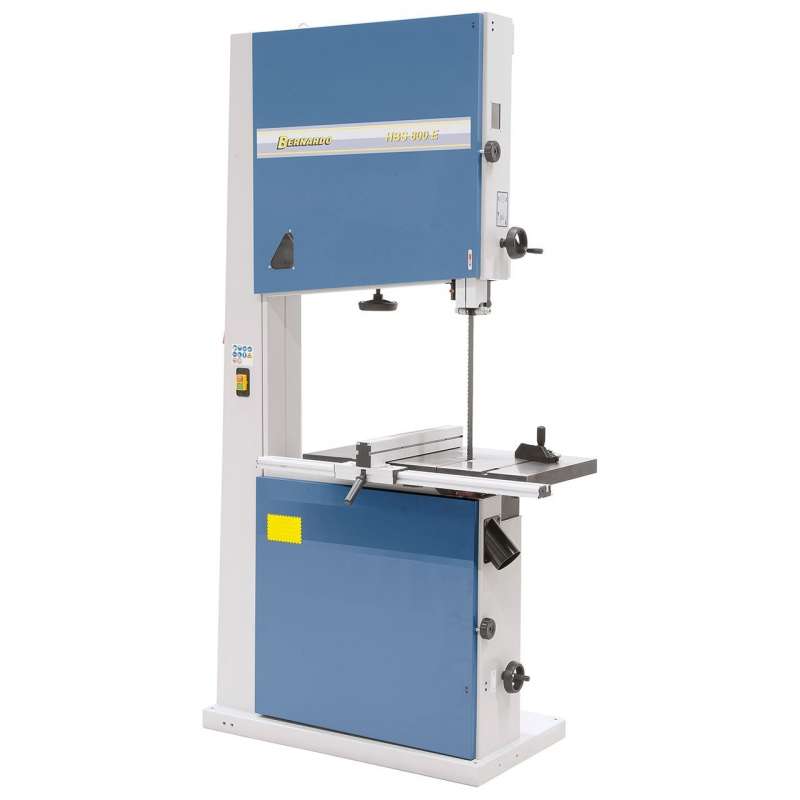

Bandsaw Bernardo HBS800E

4,995.00 € Tax included

Including €2.50 for ecotax

Reference: BHBS800E

Bernardo HBS800E band saw with two Ø100 mm suction outlets and 800 mm cutting width!

Quantity
Delivery time 12-15 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

This powerful and powerful Bernardo HBS800E band saw with a 5.8 kW motor!

This Bernardo machine is a high-end band saw equipped with multiple options allowing you to work large size pieces of wood with ease and precision!

The advantages of the Bernardo HBS800E band saw:

  • Crank height adjustment by crank
  • Gray cast iron wheels with rubber pad and chip brush
  • Standard with 2 suction nozzles (100 mm) for optimum chip extraction
  • Machine body without torsion guaranteeing a quiet and precise running
  • Large cast iron table, swiveling from -5 ° to + 45 °
  • Longitudinal stop in easily movable aluminum with quick clamping system and integrated magnifying glass
  • Includes an automatic stop limit switch when opening saw blade covers
  • Powerful 6.5 hp engine

The band saw comes with:

A band saw blade, a pusher, tools, an angle guide

Bernardo HBS800E band saw specifications:

  • cutting width: 800 mm
  • cutting height: 470 mm
  • saw blade: 5611 x 38 x 0.65 - 2 TPI
  • Sägebandbreiten: 19 - 50 mm
  • Cutting speed: 1080 m / min
  • size of the table: 640 x 500 mm
  • table extension: 200 x 500 mm
  • height of the table: 1040 mm
  • Rocking table: -5 ° to + 45 °
  • Suction connection Ø: 2x 100 mm
  • S1 motor output power 100%: 4.5 kW (6.1 HP)
  • Engine power S6 40%: 5.8 kW (7.9 HP)
  • Voltage: 400 V
  • Dimension of the machine (W x D x H): 1460 x 920 x 2470 mm
  • Weight approx. : 366 kg
