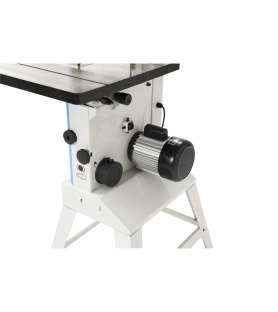

The Bernardo HBS 360 band saw is the best in its class!

This bandsaw offers a cutting height of 210mm with a powerful 1100W motor! The steering wheels are fitted as standard with a special rubber tire which guarantees a long service life of the ribbons. In addition, blades up to 25 mm wide can be mounted on it!

Advantages of the Bernardo HBS360 band saw:

• Standard with 2 cutting speeds, ideal for various materials and uses
• Stable construction made of non-deforming sheet steel for optimum results
• Tiltable gray cast iron table (up to 45°)
• Standard with upper and lower precision blade guide
• Flywheels made of cast aluminum with special rubber tires for a long service life of the saw blades
• With rip fence and tilting miter fence on both sides
• Machine base made of sheet steel for guaranteed stability during work, with integrated chip drawer
• Micro-V belt drive for optimum torque transmission

Technical characteristics of the Bernardo HBS360 band saw:

• Cutting width: 345mm
• Cutting height: 210mm
• Ribbon length: 2560 mm
• Ribbon width: 6 to 25 mm
• Cutting speed: 370 and 800 m/min
• Dimensions of the table: 545 x 515 mm
• Table height: 1020 mm
• Table tilt: 0° to 45°
• Suction diameter: 100 mm
• Motor power S1: 1100W
• Motor power S2: 1500W
• Voltage: 230V
• Machine dimensions: 800 x 700 x 1700 mm
• Weight: 70kg

The machine comes with:

• Ribbon
• Longitudinal guide with magnifying glass
• miter guide
• Ball bearing precision blade guide
• LED-Lighting
• push button
• Basement
