The Holzmann MTY 8-70 is the perfect grinder for sharpening your circular saw blades!

This grinding machine is supplied with a diamond grinding wheel for sharpening carbide-tipped blades only.
For grinding steel circular saw blades, it is the optional corundum grinding wheel. appropriate.

General description of the sharpener Holzmann MTY 8-70:

• Cast iron chassis for excellent stability and eliminating vibration when working.
• For the sharpening of blades with a diameter of 80 to 700 mm: the diameter is adjusted by the flywheel located at the end of the blade holder arm.
• Excellent accuracy of settings and angles of attack.
• Delivered with a diamond grinding wheel for sharpening carbide pellet blades.
• Supplied with reduction rings for sharpening circular blades in 20, 22 and 30 mm bore.

Technical specifications of the sharpener Holzmann MTY 8-70:

• Saw blade diameter: 80 to 700 mm
• Swing motor left and right of 20 °
• Orientation angle: left 30 °, right 45 °
• Speed ​​of rotation: 2850 rpm
• Diameter of the diamond wheel: 125 mm
• Boring of the wheel: 13 mm
• Power: 0.25 kw (0.34 hp)
• Power supply 230 V / 50 Hz

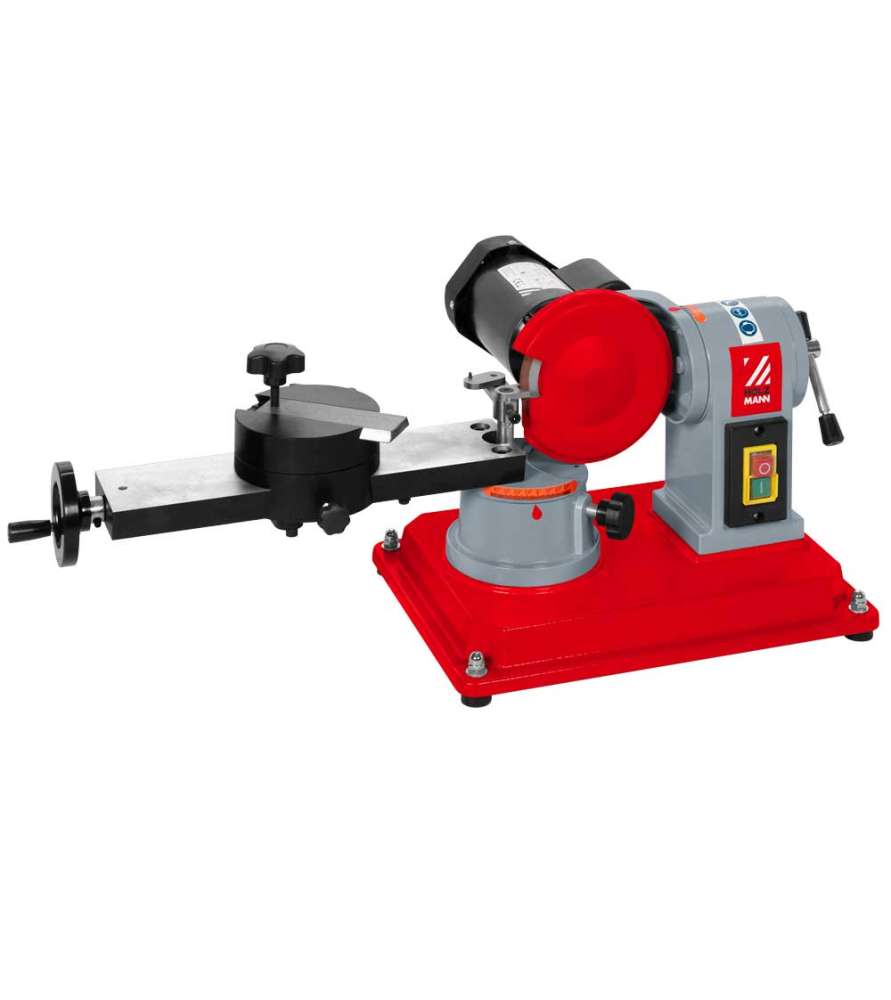

Photo 1 shows the machine as it comes with its new cover protecting the grinding wheel, pictures 2 to 5 were with the old version of the machine.
