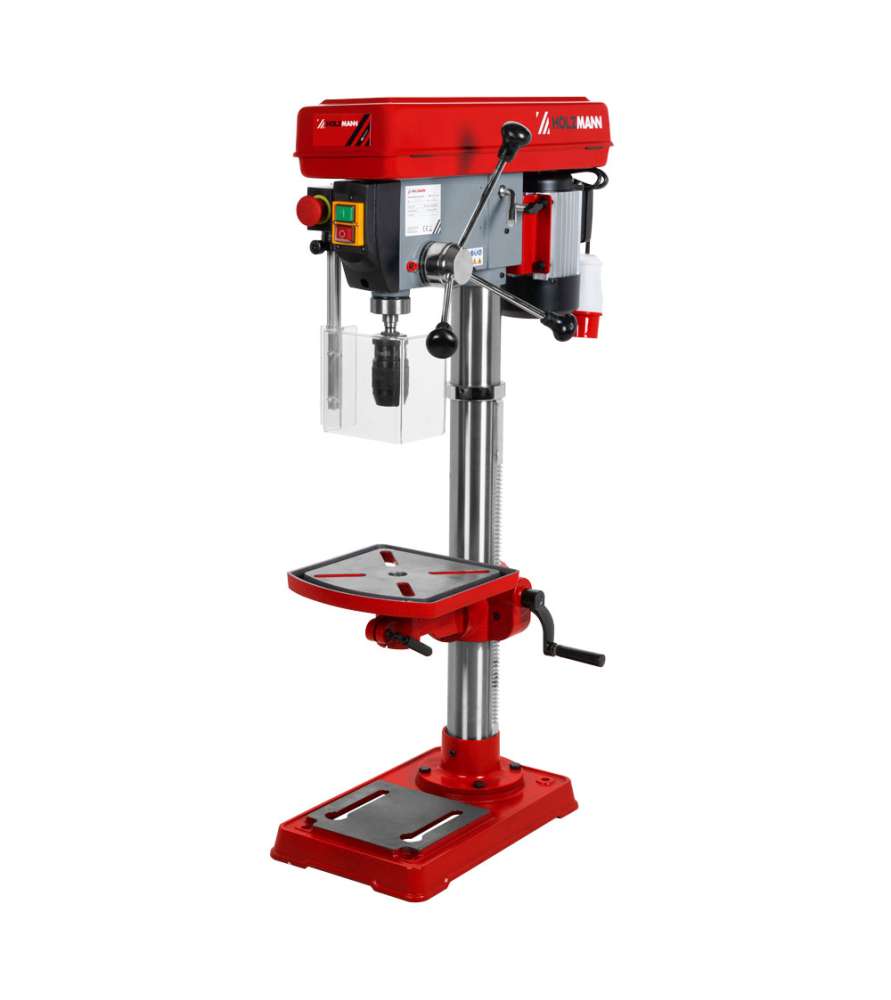

The Holzmann SB4116HM bench drill press has a solid base.

This base is ideal for a good balance of the machine, with T-slots.

Advantages of the Holzmann SB4116HM bench drill press:

• Aluminum motor according to IP54 standards.
• Steel column, solid, polished, and resistant to torsion.
• The work table can be tilted from -45 ° to + 45 ° and also rotate 360 ​​° around the column.
• Adjustable drilling depth stop, with scale for precise depth control.
• Tilting and adjustable protection screen.

Specifications of Holzmann SB4116HM drill press:

• Drilling capacity: 16 mm
• Spindle speeds: (12) 180-2740 rpm
• Voltage: 400V
• Gooseneck: 165 mm
• Spindle Morse Taper: MK2 / MT2
• Chuck stroke: 80 mm
• Distance spindle - table (max.): 430 mm
• Distance spindle - base (max.): 630 mm
• Height of the machine: 990 mm
• Dimensions of the table (L x W): 254x254 mm
• Tilting of the table: +/- 45º
• Base dimensions: 456x280 mm
• Engine power S1 (100%) / S6: 600 W
• Net weight: 45 kg

Holzmann SB4116HM drill press comes with:

Self-tightening chuck 1 to 16 mm, B16
