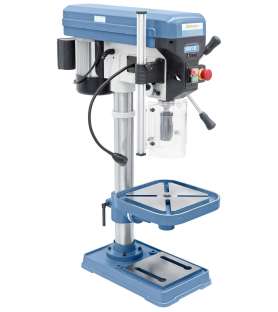

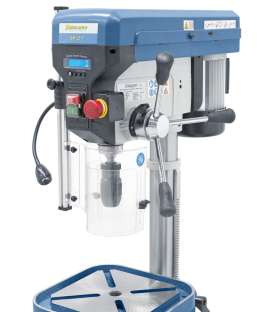

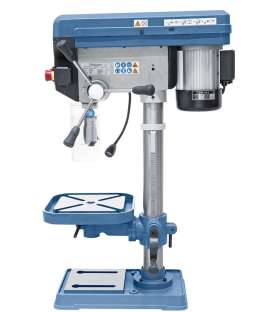

The Bernardo BM25T bench drill press is a machine equipped with a digital display for the spindle and LED lamp run.
This digital display gives the machine remarkable accuracy!
Advantages of the Bernardo BM25T bench drill press:
- Digital display for spindle stroke and LED lamp
- Gray cast iron blocks for smooth running
- High quality ball bearings guaranteeing a high concentricity of ≤ 0.03 mm measured at the spindle

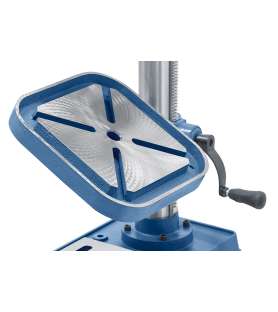

- Large drilling table features t-diagonal slots.

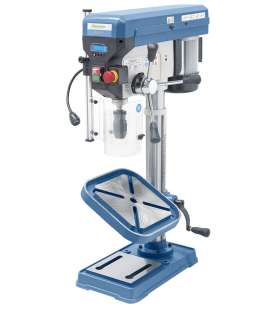

- Inclination of the drilling table (± 45 °), the rack allows adjustment in height.
- High performance motor according to IP 54
- Base of machine with T slots
- Handles providing great comfort when using
Technical specifications of the Bernardo BM25T bench drill press :
- 25 mm steel drilling capacity
- Chuck: 1-16 mm / B 18
- Morse taper: MT 2

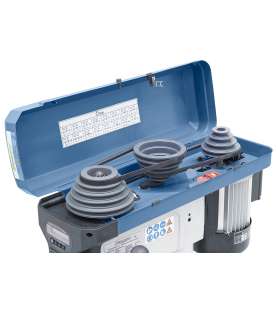

- Spindle speed: (16) 180 - 2770 rpm
- Distance axis of the column: 180 mm
- Tilting table: -45 ° to + 45 °
- Distance spindle to table max. : 415 mm
- Distance from the spindle to the base: 605 mm
- Spindle stroke: 80 mm
- Diameter of the column: 72 mm
- Size chart / size T-slot: 305 x 305 mm / 16 mm
- Work surface of the base: 205 x 205 mm
- Output motor power S1 1 100%: 0,75 kW / 230V or 400V as desired
- S6 motor power input 40%: 1,1 kW / 230V or 400V as desired
- Dimension of the machine (W x D x H): 400 x 630 x 990 mm
- Weight approx. : 57 kg
The Bernardo BM25T bench drill press comes with :
- Chuck 1-16 mm / B 18
- MT shaft chuck 2 / B 18
- Digital pin indication of race
- T-slot nuts
- Height-adjustable protective cover
- Separate emergency stop switch
- Tools
