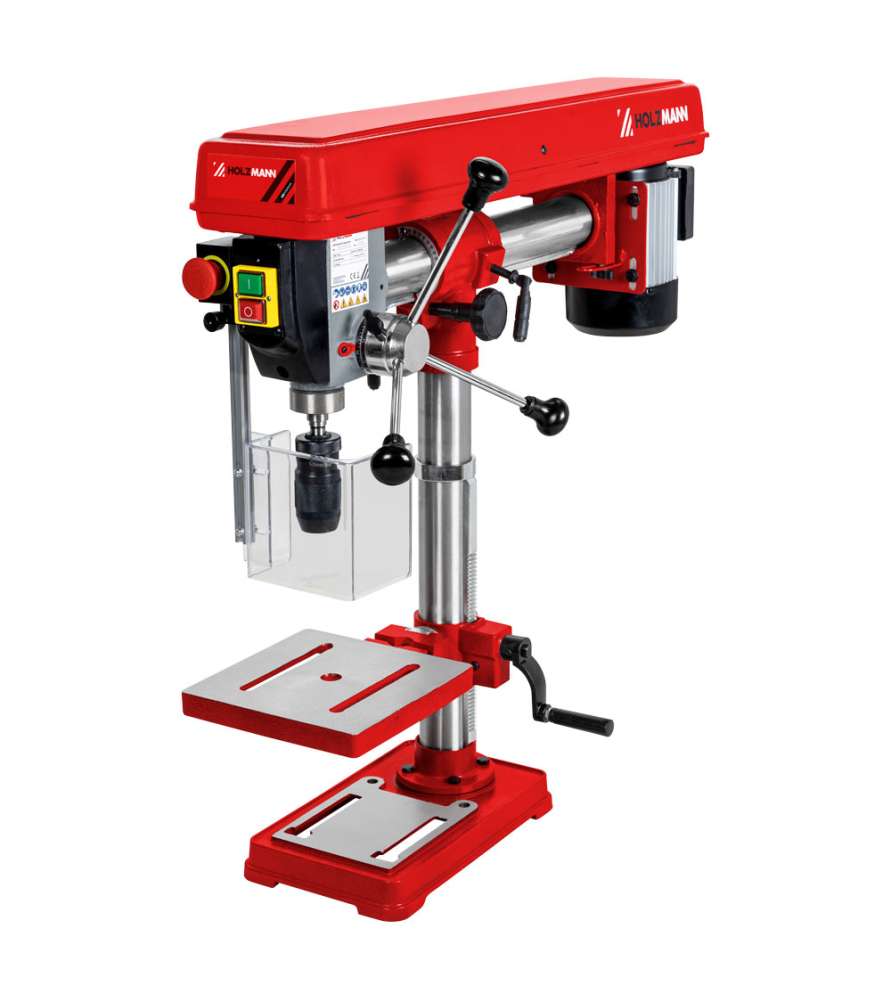

Holzmann SB3116RMN Radial Workbench Drill with Solid Base!

This base allows a good balance of the machine with T-slots.

Advantages of the Holzmann SB3116RMN bench drill press:

• Aluminum motor according to IP54 standards
• Steel column, solid, polished, and resistant to torsion.
• The work table can be tilted from -45 ° to + 45 ° and also rotates 360 ° around the column
• Practical flying three arms with drilling depth scale
• Adjustable depth indicator
• Tilting and adjustable protection screen
• Depth stop

Specifications of the Holzmann SB3116RMN drill press:

• Drilling capacity: 16 mm
• Spindle speeds (5): 500 - 2500 rpm
• Voltage: 230V
• Gooseneck: 430 mm
• Morse spindle cone: CM2
• Chuck stroke: 80 mm
• Distance max. table spit: 320 mm
• Distance max. base pin: 475 mm
• Height of the machine: 800 mm
• Size of the table (L x W): 215 x 225 mm
• Base dimensions: 350 x 215 mm
• Engine power: 600W
• Weight: 40 kg

  Same machine as Jean l'ébéniste PCR3116E.
