Multi-Hinge drilling machine Bernardo DB21

4,295.00 € Tax included

Including €2.50 for ecotax

Reference: BDB21

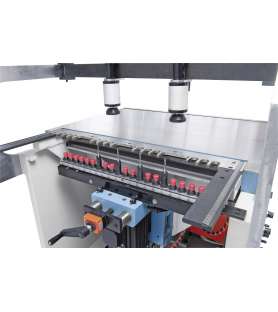

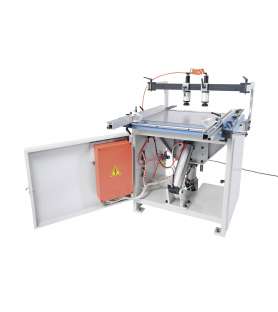

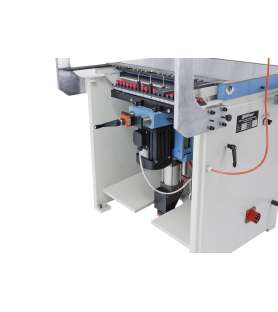

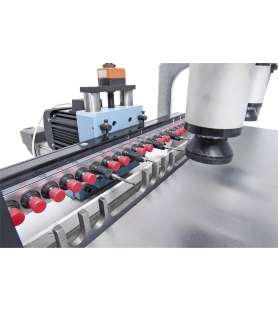

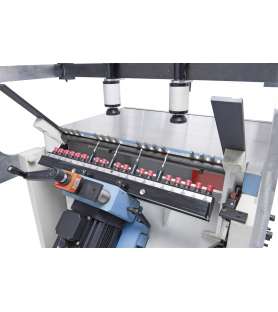

The Bernardo DB21 multi-spindle drilling machine is equipped with 21 spindles for in-line drilling of furniture bodies, frames and fittings. The tilting pneumatic drilling block guarantees quick tool changes. It is a very versatile machine which will impress with its excellent quality-price ratio.

Quantity
Factory Shipping, delivery time 7-10 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

General description of the Bernardo DB21 multi-spindle drilling machine :

  • Automatic return of the drilling beam after reaching the set depth
  • With stop for in-line drilling up to 280 mm, ideal for reproducing series of holes, e.g. on the sides of furniture, wardrobes with sliding doors, etc.
  • Splinter-free drilling thanks to adjustable descent speed

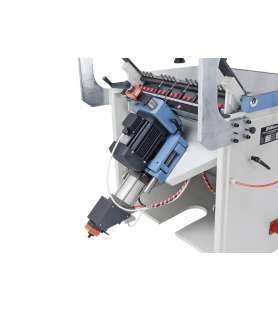

  • Drilling unit tilts 45°, for doweled miter joints
  • Drilling height adjustment above the table by mechanical digital display
  • Automatic pneumatic pedal control for clamping - drilling - releasing
  • Quick tool change thanks to proven guide system

The Bernardo DB21 multi-spindle drilling machine is delivered with :

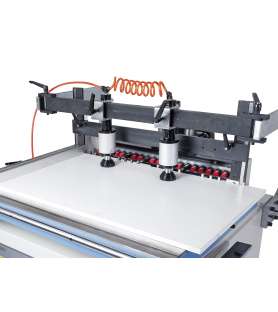

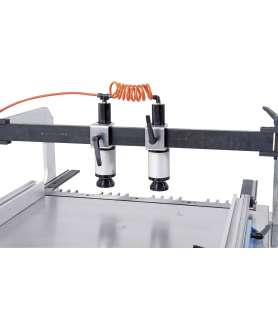

  • 2 pneumatic clamping cylinders
  • 4 quick-release chucks

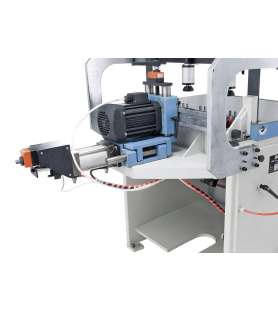

  • Pneumatic unit for tilting the drilling head
  • Mechanical digital depth display
  • Mechanical digital drilling height display above the table

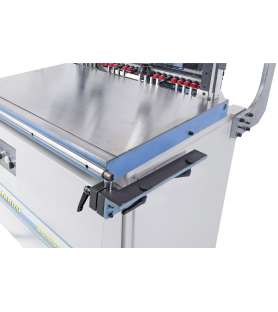

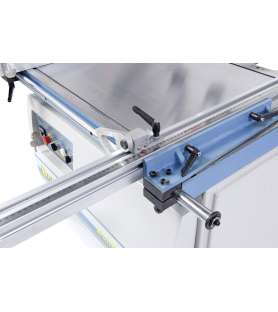

  • 2 side guides with folding stops
  • Pedal

Technical characteristics of the Bernardo DB21 multi-spindle drilling machine :

  • Number of pins: 21
  • Center distance: 32 mm
  • First/last spindle distance: 640 mm
  • Maximum drilling depth: 50 mm
  • Table dimensions: 870 x 560 mm
  • Spindle speed: 2800 rpm
  • Motor power: 1.5 kW
  • Voltage: 400 V
  • Required air pressure: 6 - 8 bar
  • Machine dimensions (L x D x H): 1100 (3000*) x 1130 x 1300 mm
  • Weight (approx.): 370 kg
  • *with optional aluminum guide
