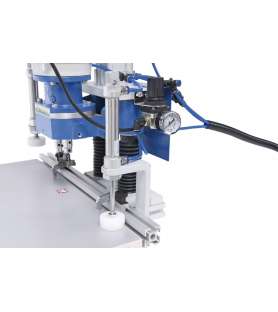

General description of the hinged drill Bernardo BBM35P - Blum :

• With stop for adjusting the drilling depth
• Powerful motor (0.75 kW) for long operation
• Precise drilling for furniture hinges, type Blum
• Standard with wide range of accessories

The Bernardo BBM35P - Blum hinged drill comes with :

• Hinged cutter diam. 35mm left
• 2 drills diam. 2mm right
• 3 spindle drill head
• Pneumatic lowering drilling unit
• Stop ruler 1.5 m with two folding stops
• 2 pneumatic hold downs
• air gun
• Pedal
• Table

Technical characteristics of the hinged drill Bernardo BBM35P - Blum :

• Drilling diameter: 35 mm
• Number of pins: 3
• Control: pneumatic
• Clamping of parts: pneumatic
• Max table / spindle distance: 85 mm
• Max table / drill distance: 50 mm
• Table dimensions: 500 x 350 mm
• Adjustable table: 105 mm
• Guide length (with extensions): 1500 mm
• Required air pressure: 6 - 8 bar
• Rotation speed: 3000 rpm
• Motor power: 0.75 kW
• Voltage: 230V
• Machine dimensions (W x D x H): 500 x 520 x 500 mm*
• Weight (approx.): 25 kg
• * without side stop rulers!
