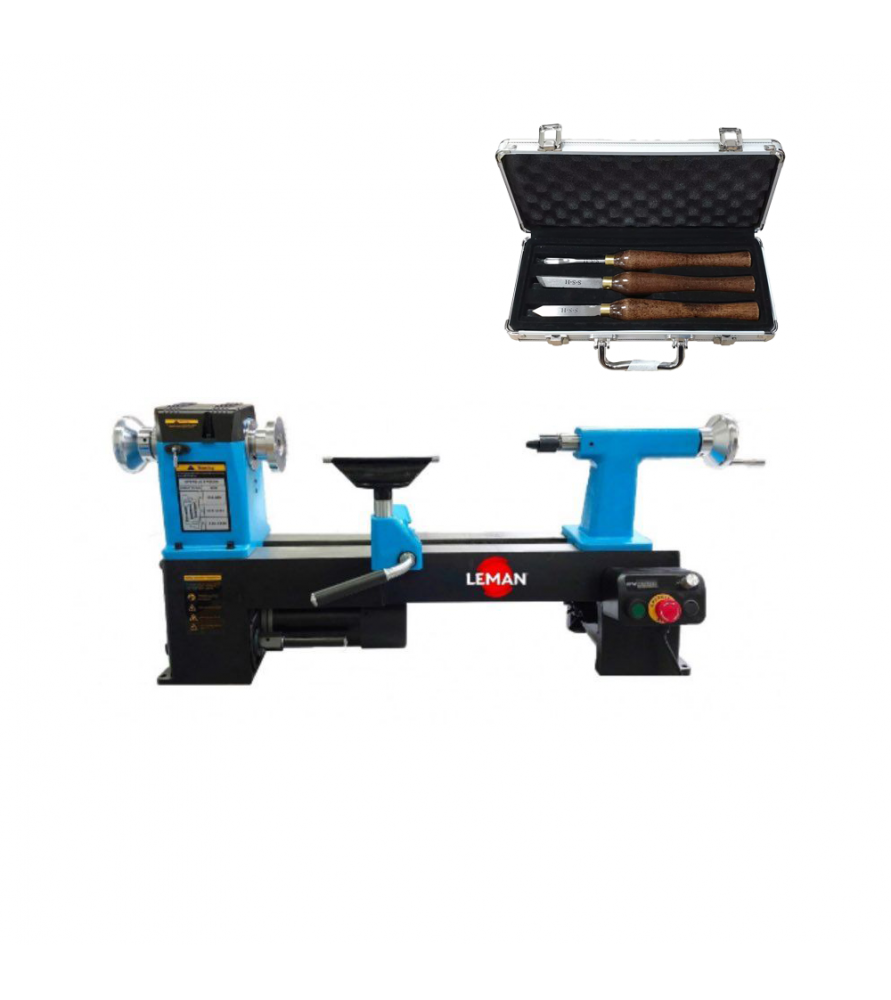

The Leman TAB042 wood lathe is a machine with a bench with a drilled base!

The user can therefore be fixed on a base or on a workbench!

Advantages of the Leman TAB042 wood lathe :

The 550W - 419 mm - TAB042 electronic wood lathe from the LEMAN brand is distinguished by its robust cast steel construction, its powerful motor and its electronic speed variator. It offers great working precision and ease of use, and will allow you to create unique and quality pieces.

The TEFC carbon motor ensures a constant speed and quiet operation. It has 3 mechanical speed ranges that are adjusted by changing the position of the belt and then, the speed adjustment is carried out via the electronic variator, equipped with a digital display.

It consists of a cast steel bench and high-quality components that guarantee a long service life. The bench can be drilled to be fixed on a base or a workbench.

The 24-position indexing system allows you to make perfectly symmetrical parts.

In addition, its compact and ergonomic design makes it ideal for use in a workshop or garage.

The wood lathe is delivered with :

1 rotating plate Ø76mm, 1 tool support of 150mm, 1 claw center, 1 rotating tailstock, 1 workpiece chase, 1 accessory holder, service keys and user manual

Technical characteristics of the Leman TAB042 wood lathe :

• Motor power: 550W
• Voltage: 230V – 50 Hz
• Dimensions (LxWxH): 990x350x390 mm
• Bench height: 190 mm
• Number of speeds: 3
• Rotation speed:
• 1 - 250-850 RPM
• 2 - 430-1450 RPM
• 3 - 950-3200 RPM
• Distance between centers: 419 mm
• Diameter above the bench: 305 mm
• Tool holder length: 200 mm
• STOCKET
• Stock of the stock: CM2
• Drive spindle thread: M33 x 3.5 mm
• Divider: 12 positions
• TAILSTOCK
• Taper of the stock: CM2
• Taper of the rotating tailstock: 65 mm
• Drilling of the stock: ø 10 mm
• Net Weight: 42 Kg
• Gross Weight: 45 Kg
