General description of the Bernardo HM 30 Porta square chisel mortiser :

• Powerful motor, suitable for prolonged operation

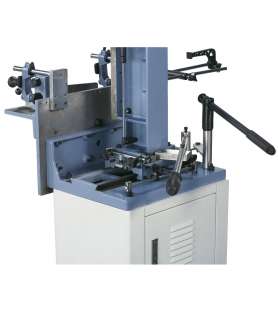

• Adjustable eccentric flange to secure the workpiece on the table

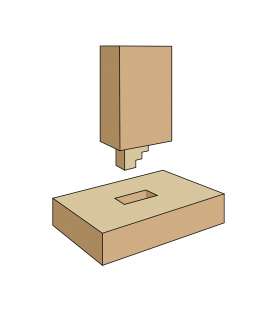

• Production of rectangular mortises for mortise and tenon assemblies, etc.
• Ideal for mortising hard or soft woods
• Adjustable mortising depth for repeatable work
• With gas spring to assist mortising

The Bernardo HM 30 Porta square chisel mortiser is delivered with :

• 16mm keyed drill chuck
• 2 eccentric flanges
• Longitudinal guide
• Graduated depth stop
• Quick clamp vice
• Hollow chisel 15.87 mm
• Gas compensation strut
• Tilting table
• Closed base with cabinet

Technical characteristics of the Bernardo HM 30 Porta square chisel mortiser :

• Maximum chisel size: 25.4 mm
• Drilling stroke: 180 mm
• Teacher. maximum mortising distance: 76 mm
• Maximum room height: 1150 mm
• Maximum room width: 210 mm
• Table dimensions: 500 x 150 mm
• Left/right tilting table: 45° / 45°
• Sliding drilling head (sides): 235 mm
• Sliding drilling head (front/rear): 100 mm
• Rotation speed: 1400 rpm
• Motor power: 1.1 kW (1.5 hp)
• Voltage: 400 V
• Machine dimensions (L x D x H): 650 (1255)* x 550 x 1820 mm
• Weight (approx.): 190 kg
• * with longitudinal guide
