The mortiser square chisel Bernardo HM25 Top has a reclining head to the right and to the left!

This machine offers indisputable accuracy and impeccable working comfort!

Advantages of the tilting head mortising machine:

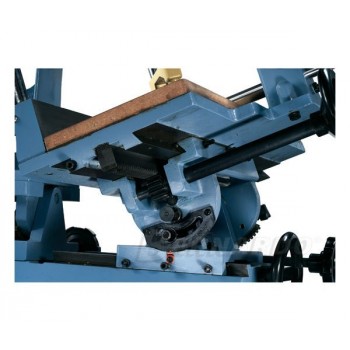

• Cross table "well thought" mounted dovetail catching game (run 180 m / m lateral and 130 m / m transverse) for a very high precision in your work.
• The cast iron column, with a large section, supports the sliding head mounted on a dovetail.
• A compensating jack for raising and lowering the head.

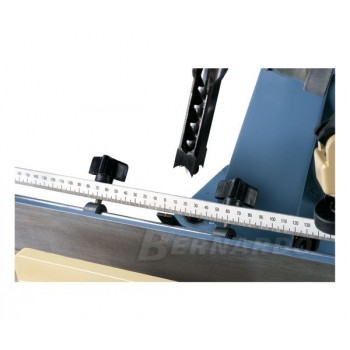

• The column as well as the lateral movement of the table are equipped with a millimetric rule with stop to satisfy all your repetitive works.
• Rotating the column 180 ° to easily accomplish all your off-table work.
• 2 vertical pressers for optimal maintenance of your room (200m / m under the pressers).

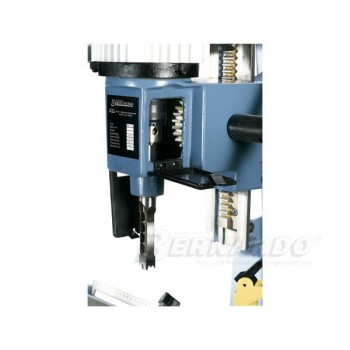

• Reclining head 22.5 ° right and left
• High power asynchronous motor (750W) with a rotation capacity of 1400 rpm for perfect chip clearance even for larger mortise sections.

Technical characteristics of the tilting head mortising machine:

• W x W x H mm: 570 x 650 x 1115 mm (without the base)
• Table dimensions W x W: 540 x 190
• Table setting L / P mm: 170/140
• Height / Max wood width: 270x185 mm
• Inclination of the right and left head: 22.5 ° / 22.5 °
• Drilling stroke mm: 230
• mandrel opening ø mm: 16
• Drilling depth mm: 76
• Bedane (tail ø) mm: 19
• Chestnut diameter max: 25 mm
• Speed ​​of rotation: 1400 rpm
• Single power motor absorbed P1 W: 750 (1 HP)
• Weight kg: 110 kg without the base

The mortiser square chisel Bernardo HM25 Top comes with:

• Caisson (be careful, normally the box is an option at Bernardo but we add it to work safely with the machine)
• 16 mm chisel
• Service Keys

This Bernardo tilting chisel mortiser is exactly the same machine as the Holzmann STM26S brand that you can see: by clicking here!
