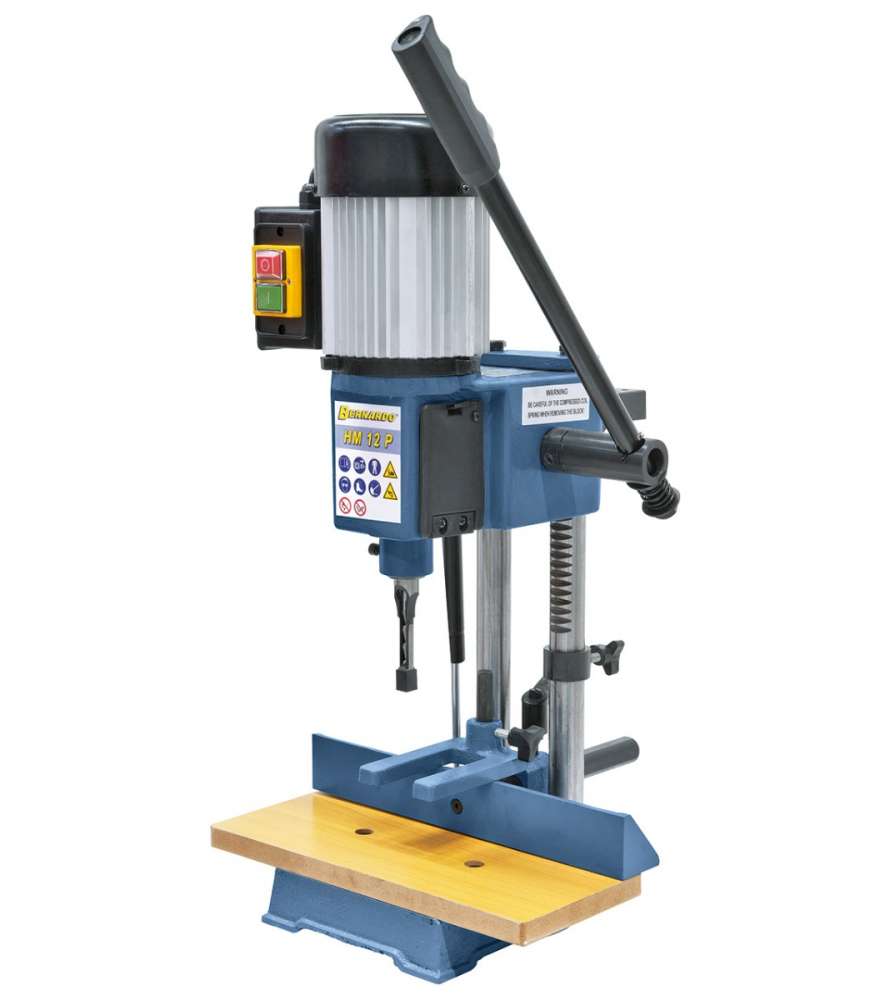

General description of the Bernardo HM12P square chisel mortiser:

• Head height adjustment by rack

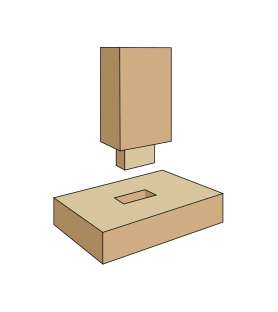

• Realization of rectangular mortises for tenon and mortise joints, etc.
• Double column stand for precision work
• Adjustable mortising depth for serial work
• Ideal for mortising hard or soft woods

Technical characteristics of the Bernardo HM12P square chisel mortiser:

• Max chisel size: 19 mm
• Max chuck opening: 13 mm
• Drilling stroke: 130 mm
• Maximum workpiece height: 130 mm
• Table dimensions: 340 x 140 mm
• Rotation speed: 1400 rpm

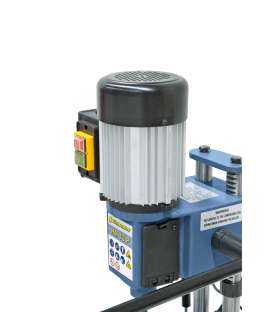

• Engine power: 0.37 kW (0.5 hp)
• Voltage: 230 V
• Machine dimensions (W x D x H): 340 x 390 x 700 mm
• Weight (approx.): 26 kg

The Bernardo HM12P square chisel mortiser is delivered with:

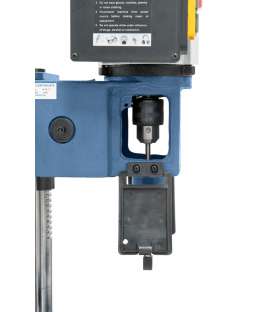

• Keyed drill chuck 13 mm

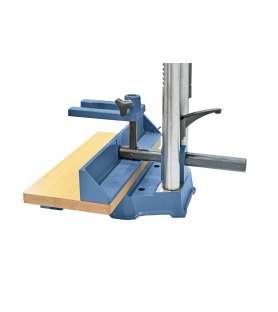

• Adjustable guide

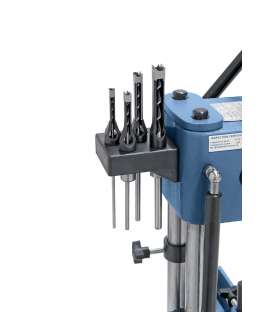

• Chisel storage rack
