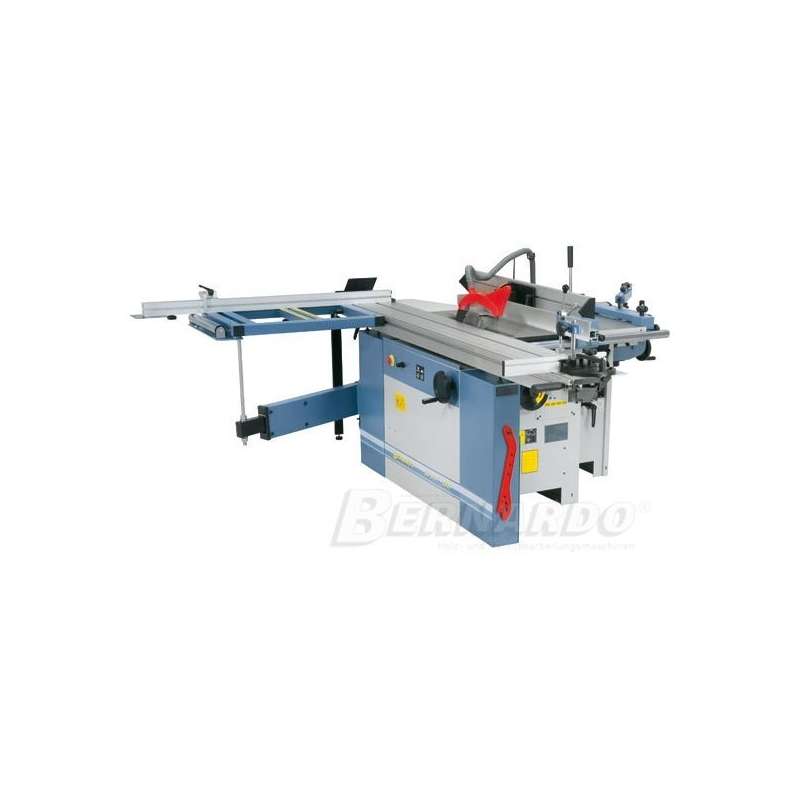

The Bernardo CU310F Wood Combination offers 6 essential woodwork operations!

This is the ideal handset for the do-it-yourselfer and seasoned enthusiast who can plan, plan, saw, cut, tenon and mortise at home even in a small space thanks to its compact size!

Important recommendation from Probois for many woodworking machines such as this handset:

• Before starting always check the inside of the machine, see if the belts are correctly fitted, tighten the bolts, grease the tables, etc. because the different transports cause vibrations.
• Always use an extension cord of 2.5² wire size
• The extension must not exceed 10 meters and must not be rolled
• Provide an electric meter with special fuses starting machine of at least 20A
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and machine warranty
• Always grease the cast iron tables with slip-wood
• Always work with the protections in place
• Do not work with blunted or dulled irons it can damage the mechanism, the advance of the planer, break the belt
• The machine does not start? No doubt the chip ejector housing is poorly positioned on the planer jointer, it is a safety!

General description of the Bernardo CU310F wood combination:

• Powerful motors to ensure optimal results even during prolonged operation
• Sliding table with very stable roll for large heavy panels
• Machine frame made of steel and cast iron, dimensionally stable
• Extendable telescopic guide, to be mounted on the sliding table at the front or rear
• Tilting guide (90 ° to 45 °) with large work surface
• LED speed electronic display for the milling machine
• Standard with mortiser (16 mm capacity)
• Robust router hood with anodized guide rails
• Dynamic balancing milling spindle for precise operation
• Planer with shaft with 3 precision rolling irons
• Dimensions of the machine: 2600 x 2990 x 1250 mm
• Weight: 590 kg
• Three phase machine

Technical characteristics of each operation of the Bernardo CU310F handset:

Planer Thicknesser:

• Dimensions of the jointer tables mm: 1390 x 310
• Width of alignment mm: 310
• Height of planing wood mm: 5-225
• shaft ø mm: 70
• Number of shoes: 3 (310x25x3.0 mm)
• Max pass depth: 4
• Speed ​​of rotation rpm: 4800
• Speed ​​of wood advance: 7
• Output diameter for suction mm: 100
• Tri-power engine: 2.8 kw = 3.8 hp (3.9 kw in S6 = 5.3 hp)

Mortiser:

• chuck 0-16 mm
• Deep race up to 155 mm
• Lateral run: 285 mm
• Table 200x500 mm

Circular saw with scorer:

• 830x300 mm cast iron table with 505x300 mm sheet metal extension.
• Sliding trolley with blade 2600x270 mm.
• Incisor included diameter 100x20x3 mm, rotation 8500 trs
• Speed ​​of 4500 rpm for the blade.
• Saw diameter without scorer: 315
• Saw diameter with scoring saw: 254
• Diameter of bore mm: 30
• Cutting height of the saw (dia 315) mm: 100
• Cutting height of the saw (dia 305) at 45 °, mm: 80
• Cutting height of the saw (dia 254) mm: 70
• Cutting height of the saw (dia 254) at 45 ° mm: 55
• Max cutting length, mm: 2600
• Cutting width 630 mm:
• 300 mm saw table + 300 mm table dew
• Output diameter for suction mm: 100
• Tri-power engine: 2.8 kw = 3.8 hp (3.9 kw in S6 = 5.3 hp)

4 speed tops:

• Diameter of the shaft mm: 30
• Height of the shaft mm: 100
• max. tool diameter mm in the crankcase: 200
• max. tool diameter mm in the well: 180
• Speed ​​rotation: 1800/3000/6000/9000 rpm
• Output diameter for suction mm: 100
• Tri-power engine: 2.8 kw = 3.8 hp (3.9 kw in S6 = 5.3 hp)
• Sliding aluminum sliding tenoning trolley with frame included, with a stroke of 2600 mm.

The Bernardo CU310F handset comes with:

• Iron 310 x 25 x 3 mm
• Roll Planing Table Extension
• Slotting
• Westcott Chuck 0 - 16 mm
• Eccentric flange
• Spinning machine (16/20/22/25 mm)
• Carbide blade 254 x 3.0 x 30 mm / 40 teeth
• 2 parts splitter 2-100 x 20 mm / 24 teeth
• Saw blade protector with suction nozzle and hose
• Miter guide with eccentric flange
• Table extension
• Telescopic guide with retractable stops
• Roller sliding table
• Top cover
• Abrasive sleeve diam. 75 mm
• Height adjustment of milling spindle with magnifying glass
• Reversing the direction of rotation of the milling spindle
• LED speed display
• Push
• Service tools

VERY IMPORTANT FOR DELIVERY!

The delivery of this handset to heavy wood (650 kg gross env) requires a big truck with rags! The place of delivery must be provided so that the truck can approach easily. In the case of a delivery location which is difficult to access, we must inform us so that the factory can order a smaller truck but delivery charges will apply for this special request. Delivery charges must be paid before shipment.

The handset arrives in a wooden case. Our prices do not include the assembly of the various accessories such as the trolley, the protectors, the guides ... nor the installation.
