The only combination of high quality European professional woodwork! Heavy-duty welded sheet metal frame, slid aluminum carriage sliding on hardened rails, a sure bet!
Holzprofi combi COMB320E offers 5 indispensable woodworking operations for professionals!
This is the ideal combination of professional and knowledgeable amateur who can plan, plan, saw, toss and tenon.
Important recommendation from Probois for many woodworking machines such as this:
Before starting always check the inside of the machine, see if the belts are correctly fitted, tighten the bolts, grease the tables, etc. because the different transports cause vibrations.
Always use an extension cord of 2.5² wire size
The extension must not exceed 10 meters and must not be rolled
Provide an electric meter with special fuses starting machine of at least 20A
Have a standard electric meter with neutral and earth
Always work with a chip vacuum cleaner for your health and machine warranty
Do not work with blunted or dulled irons it can damage the mechanism, the advance of the planer, break the belt
The machine does not start? No doubt the chip ejector housing is poorly positioned on the planer jointer, it is a safety!

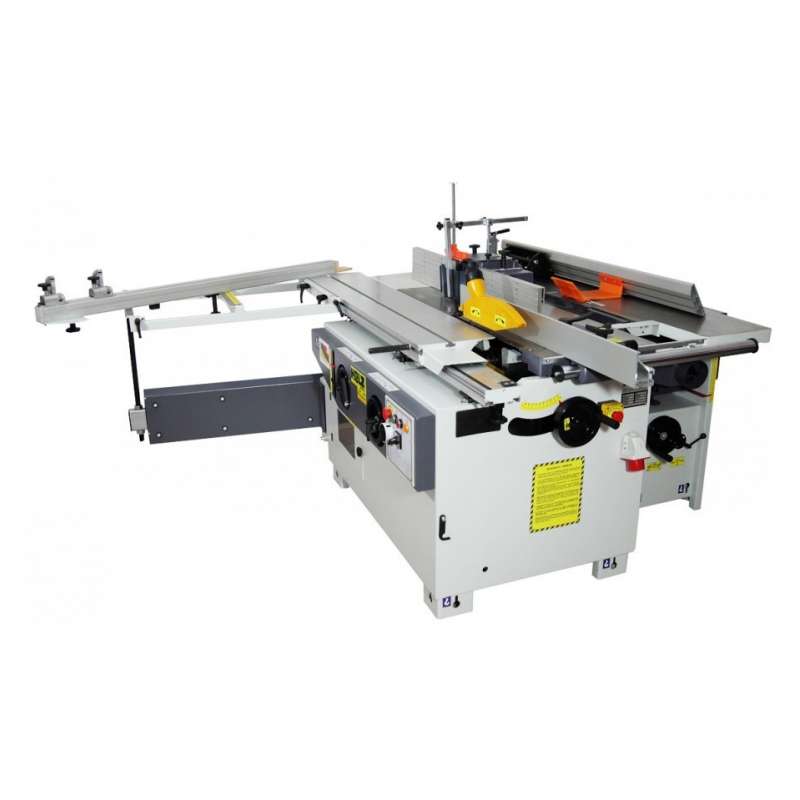

General description of the combined wood Holzprofi COMB320E :
Frame made of thick welded sheet metal
Blade aluminum trolley sliding on high precision hardened rails
Telescopic ruler of 2500m with 2 stops on a carriage frame to be squared
Parallel guide with micrometric adjustment
Reciprocating saw blade 0-45 °
Fixed tree top
Rectified cast iron tables
Very high sawing and routing capabilities
Router with safety bar guides
Perpendicular open planing tables on the saw-to-saw side
Optional mortiser rotation on the left
Technical characteristics of each operation of the Holzprofi COMB320E:
PLANER - THICKNESSER
Table dimensions 1500x320 mm
Dimensions planing table 600x316 mm 1100x155 mm thickness guide dimensions
Tilt guide inclination 90 to 45 °
Planing height 230 mm

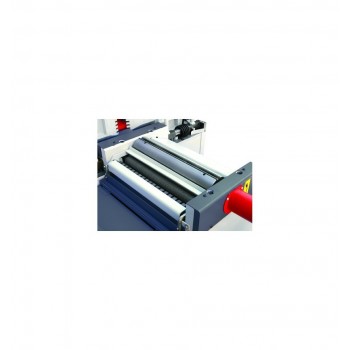

Diameter of the shaft to 3 irons 100 mm
Advance speed disengageable
Chip taking max. dew 5
Chip taking max. planing 3
Rotation of the tree 5000 rpm
Engine power 400V / 50Hz: 3.0 KW (4CV)

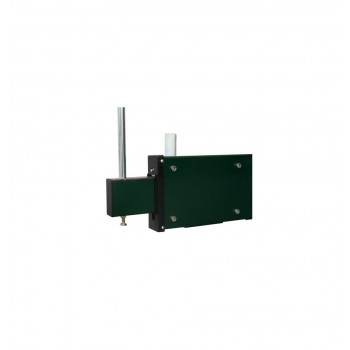

MORTISER (optional)
WESCOTT type mandrel 0 - 16 mm
Longitudinal stroke 200 mm
Cross Stroke 150 mm
Slotting height above the table 125 mm
Dimensions of the table 250 x 400 mm
TOUPIE
Dimensions cast iron table 1250x450 mm
With sheet extension 400 x 450 mm
Max. of the tool in the table / housing 180/200 mm
Diameter of the tree x length 30 x 125 mm
Tilt of the Fixed Tree
Running of the tree 160 mm
Speed of rotation 1400/3500/6000/8000 rpm
Engine power 400V / 50Hz: 3.0 KW (4CV)
SAWING
Aluminum trolley dimensions 2000 x 285 mm
Dimensions cast iron table 1250 x 450

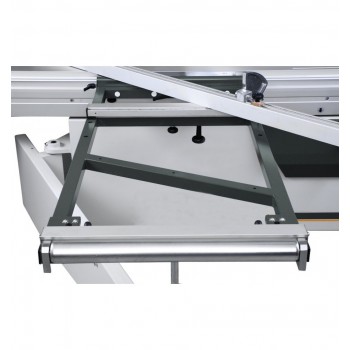

Cart frame dimensions 900 x 600
Cutting width at the guide // 630 mm
Blade diameter 315 x 30 mm
Diameter of the scorer 120 x 20 mm
Saw speed 4000 rpm
Speed of the scoring machine 8000 rpm
Inclination of the blade 0 to 90 °
Max. cutting height at 45 ° and 90 ° 72 and 102 mm
Engine power 400V / 50Hz: 3.0 KW (4CV)
Scoring motor power 0.75Kw / 1CV
Suction nozzle 120 + 120 + 120 + 120 + 60 mm
Total weight 900 kg
Gross weight: 1 tone
This Holzprofi COMB320E is a professional machine dedicated to the professionals but also to the amateurs looking for a material of quality!
We recommend to consult us for the delivery time which can vary according to the factory Holzprofi because it can be fast (under 5 days approximately) if it is available in their stocks until 3 weeks if it is currently being sourced.
VERY IMPORTANT FOR DELIVERY!
The delivery of this very heavy wood combination (1 ton) requires a big truck with rags! The place of delivery must be provided so that the truck can approach easily. In the case of a delivery location which is difficult to access, we must inform us so that the factory can order a smaller truck but delivery charges will apply for this special request. Delivery charges must be paid before shipment.
The handset arrives in a wooden case. Our prices do not include the assembly of the various accessories such as the trolley, the protectors, the guides ... However we can make an estimate for the assembly by a professional of the factory Holzprofi. The price will depend on the place of delivery and the time spent. You can make a request by mail.
Shaft for the Holzprofi COMB320E planer and thicknesser, only to be ordered together with the machine
