The Bernardo CF410F Wood Combination offers 6 essential woodwork operations!

This is the ideal handset for the do-it-yourselfer and seasoned enthusiast who can plan, plan, saw, cut, tenon and mortise at home even in a small space thanks to its compact size!

Important recommendation from Probois for many woodworking machines such as this handset:

• Before starting always check the inside of the machine, see if the belts are correctly fitted, tighten the bolts, grease the tables, etc. because the different transports cause vibrations.
• Always use an extension cord of 2.5² wire size
• The extension must not exceed 10 meters and must not be rolled
• Provide an electric meter with special fuses starting machine of at least 20A
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and machine warranty
• Always grease the cast iron tables with slip-wood
• Always work with the protections in place
• Do not work with blunted or dulled irons it can damage the mechanism, the advance of the planer, break the belt
• The machine does not start? No doubt the chip ejector housing is poorly positioned on the planer jointer, it is a safety!

General description of the Bernardo CF410F wood combination:

• Powerful motors to ensure optimal results even during prolonged operation
• Stable prismatic guide, tilting from 90 ° to 45 °

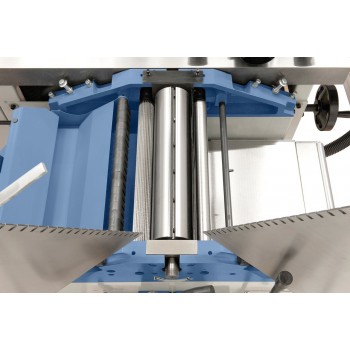

• 4-irons maintenance-free shafts, 18% HSS steel irons
• Roller sliding table to simplify the handling of large pieces
• Aluminum parts (cutting trolley, guides, etc.) anodized
• Router cover with aluminum guide rails on both sides
• Large gray cast iron tilting block from 0 ° to -45 °
• Digital strawberry speed indicator, fast and easy reading
• Telescopic guide with retractable stops and quick adjustment
• Solid router hood with suction nozzle 100 mm
• Dynamic balancing milling spindle for precise operation
• Voltage: 400 V
• Machine dimensions (W x D x H): 2600 x 2800 x 1280 mm
• Weight approx. : 765 kg

Technical characteristics of each operation of the Bernardo CF410F Handset:

Jointer :

• Cutting width: 410 mm
• Table length: 1600 mm
• Table height: 950 mm
• Speed ​​of the tree: 4100 rpm
• Number of shoes: 4
• Diameter of the tree: 95 mm
• Guide: 1100 x 150 mm
• Reclining Guide: 90 ° to 45 °
• Removal by max pass: 5 mm
• Continuous power S1 100%: 2.2 kW (3.0 hp)
• Power S6 40%: 3.0 kW (4.0 hp)

Planer :

• Table length: 750/930 * mm
• Width of plane: 405 mm
• Planing height, min / max: 5 - 230 mm
• Removal by max pass: 5 mm
• Feed speed: 6 m / min
• ø suction nozzle: 100 mm

* with planing table extension

Mortiser:

• Table dimensions: 450 x 190 mm
• Westcott Chuck: 0 - 16 mm
• Maximum drilling depth: 125 mm
• Turning stock: 175 mm
• Adjustable height: 115 mm

Circular saw:

• Table dimensions: 1300 x 380 mm
• Table height: 950 mm
• Table extension: 310 x 350 mm
• Sliding table with roll: 880 x 580 mm
• Cutting trolley: 2600 x 270 mm
• Running sliding table: 2600 mm
• Diam. maximum blade: 315 x 30 mm
• Maximum cutting height at 90 ° / 45 °: 100/80 mm
• Cutting width with parallel guide: 730 mm
• Blade speed: 4500 rpm
• Sawing speed: 8500 rpm
• Scorer: 90 x 20 mm
• ø suction nozzle: 95 mm
• Continuous power S1 100%: 3.0 kW (4.0 hp)
• Power S6 40%: 4.2 kW (5.7 hp)

Top:

• Tree diameter: 30 mm
• Adjustable height: 125 mm
• Tilting spit: 0 ° to -45 °
• Opening in the table: 80/110/150/200 mm
• Max tool height: 110 mm
• Diam. max tool width: 180 mm
• Spindle speed: 1800/3000/6000/9000 rpm
• ø suction nozzle: 100 mm
• Continuous power S1 100%: 2.8 kW (3.8 hp)
• Power S6 40%: 3.9 kW (5.3 hp)

The handset Bernardo CF410F comes with:

• Dresser blades 410 x 30 x 3 mm
• Roller planing table extension
• Slotting
• Westcott Chuck 0 - 16 mm
• Eccentric flange
• Carbide blade 315 x 3.0 x 30 mm / 40 teeth
• Scorer 90 x 3.0 x 20 mm / 12 teeth
• Saw blade protector with suction nozzle and hose
• Miter guide with eccentric flange
• Table extension
• Telescopic guide with retractable stops
• Roller sliding table
• Top cover
• Reversing the direction of rotation of the milling spindle
• Digital speed indicator of the milling spindle
• Push
• 2 sliding handles
• Service tools

VERY IMPORTANT FOR DELIVERY!

The delivery of this handset with very heavy wood (1 ton gross env) requires a big truck with rag! The place of delivery must be provided so that the truck can approach easily. In the case of a delivery location which is difficult to access, we must inform us so that the factory can order a smaller truck but delivery charges will apply for this special request. Delivery charges must be paid before shipment.

The handset arrives in a wooden case. Our prices do not include the assembly of the various accessories such as the trolley, the protectors, the guides ... nor the installation.
