The Holzmann K5-260L wood combination offers 5 essential woodworking operations!

This is the equivalent of the F60-250 dual-block handset sold by Fox and almost the copy of Kity Bestcombi 2000 or Scheppach Bestcombi 3.0 with a jointer more important.

This is the ideal handset for the handyman who can plan, plan, saw, toast and tenon at home even in a small space thanks to its compact size!

Important recommendation from Probois for many woodworking machines such as this handset:

• Before starting always check the inside of the machine, see if the belts are correctly fitted, tighten the bolts, grease the tables, etc. because the different transports cause vibrations.
• Always use an extension cord of 2.5² wire size
• The extension must not exceed 10 meters and must not be rolled
• Provide an electrical meter with special fuses at least 16A starting
• Have a standard electric meter with neutral and earth
• Always work with a chip vacuum cleaner for your health and machine warranty
• Always grease the cast iron tables with slip-wood
• Always work with the protections in place
• Do not work with blunted or dulled irons it can damage the mechanism, the advance of the planer, break the belt
• The machine does not start? No doubt the chip ejector housing is poorly positioned on the planer jointer, it is a safety!

General description of the Holzmann K5-260L wood combination:

• Solid gray cast iron table perfectly flat and ground for vibration-free work
• Optional with mortiser (16 mm capacity)
• Adjusting the saw with ergonomic ruffles
• Increased ease of use with standard sliding table with aluminum guide
• Emergency stop on the front for more security

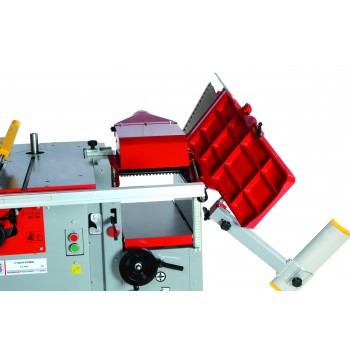

• Integrated chip suction hood, folding, for planing - diam. 100 mm connection
• Ideal for precisely planing boards, battens and beams, etc.
• Dynamic balancing milling spindle for vibration-free operation
• Non-deformable planing tables in highly ribbed gray cast iron
• Canned advance for alignment
• Overall dimensions: 1510 x 1330 x 1120 mm
• Total weight of the handset: 280kg

Technical data of each Holzmann K5-260L wood combination operation:

Planer Thicknesser:

• Dimension of the tables of thickness mm: 1090 x 250
• Width of planing mm: 250
• Cutting diameter mm: 75
• Number of irons: 3
• Dimensions of the dresser table mm: 600 x 245
• Planing width mm: 245
• High. planing wood mm: from 5 to 195
• Feed speed of wood m / min: 8.0
• Speed ​​of rotation rpm: 4000
• Mono motor power absorbed P1 W: 2000
• Mono motor useful power P2 W: 1500

Circular saw:

• Dimensions of the table mm: 900 x 410
• Cutting width at parallel guide mm: 460
• Inclination of the blade: from 90 ° to 45 °
• Cutting height at 45 ° / 90 °: 50/60
• saw blade diameter / bore mm: 200/30
• Speed ​​of rotation rpm: 4750
• Mono motor power absorbed P1 W: 1260
• Mono motor useful power P2 W: 1100

Top:

• Dimensions of the table mm: 900 x 400
• shaft ø mm: 30
• max. tool diameter mm: 150 / li
• tool passing ø in the table: 140
• Effective height of the shaft mm: 80
• Speed ​​of rotation rpm: 6500
• Mono motor power consumption P1 W: 1400
• Mono motor useful power P2 W: 1000

Tenoning and sawing cart:

• Dimensions of the table mm: 400 x 250
• Stroke mm: 1000
• Cutting depth with saw mm: 800

The mortiser is not included, it leaves you the choice to opt for the optional mortiser of this model or a mortiser with chisels to have another independent machine.

Also think of the moving kit so you can easily move your handset if it does not have a definitive place in your workshop. There is no pre-drilled location on the frame of the machine, it will be necessary to realize oneself according to the pasta of the displacement kit chosen.

Also know that you can separate in two the machine if you need to pass through a standard door.

This Holzmann K5-260L wood combination is the same machine as the Bernardo CWM250R handset: see here!
