General description of the Bernardo 880 G Vario metal lathe and milling machine with 2-axis digital display

• Standard with 38mm spindle bore for machining large shaft diameters
• Heavily ribbed prism bed with hardened and induction ground bed guide
• Versatile use: longitudinal turning, facing, reaming, threading, ...
• Standard with change gears for cutting metric threads
• Standard with delta frequency converter for high torque in the lower speed range and almost constant speed under load
• Main spindle with adjustable taper roller bearings in P5 quality
• Milling tool with digital display for nib stroke and speed
• The milling head swivels on both sides for corner drilling, chamfer milling, etc.
• Ideal for processing steel, non-ferrous materials and plastics
• User-friendly arrangement of the switching elements on the gear unit
• Tailstock with single lever clamping, adjustable for taper turning

Technical characteristics of the Bernardo 880 G Vario metal lathe and milling machine with 2-axis digital display:

• Upper width: 880 mm
• Center height: 160 mm
• Diameter above the bench: 320 mm
• Spindle bore: 38 millimeters
• Registration in the spindle bore: DIN 55029, D1-4
• Speed ​​range, continuous: 75 - 435/400 - 2250 rpm
• Longitudinal feed range: (15) 0.07 - 1.0 mm / rev
• Plan the flux area: (15) 0.017-0.25 mm / rev
• Metric threads: (18) 0.2-3.5mm
• Inch thread: (21) 8 - 56 Gg / 1 "
• Pinolen Street: 100 mm
• Pen holder: MK 3
• T-slot size in cross slide: 12mm
• Motor output power S1 100%: 1.5 KW / 400V
• Motor input power S6 40%: 2.2 kW / 400V

Milling machine

• Max drilling capacity : 20 mm
• Face milling cutter max. : 63 mm
• End mill max. : 20 mm
• Overhang: 170 mm
• Spindle speed, continuously variable: 50-2250 rpm
• Spindle support: MK2
• Swivel milling head: -90 ° to + 90 °
• Height-adjustable milling head: 260 mm
• Machine dimensions (W x D x H) *: 1660 x 650 x 1090 mm
• Total weight approx. : 318 kilograms

* without base

The Bernardo 880 G Vario metal lathe and milling machine with 2-axis digital display is delivered with:

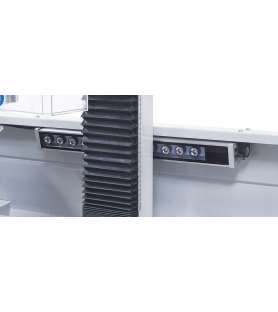

• ES-12 V 2-axis digital display with LCD display

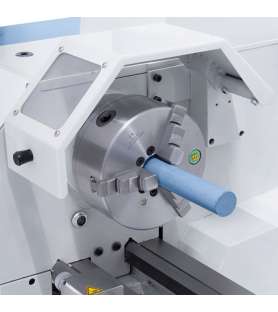

• 3-jaw chuck DK11-160 mm / D4
• Key chuck 1 - 13 mm / B 16
• MT 2 / B 16 drill chuck
• Fixed central point
• Change speed
• Quadruple steel support
• Slip clutch
• Longitudinal micrometric stop
• Cross slide with top support
• Frequency converter
• M 10 clamping spindle
• Digital feather stroke display
• Digital speed display
• Wire clock
• LED machine light
• Forage protection
• Screw cover
• Chip back wall
• Operating tool
