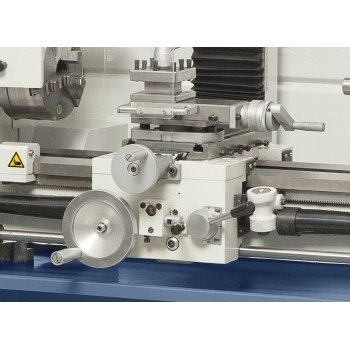

This Bernardo Proficenter 700 BQV metal lathe and milling machine allows drilling, milling and turning with a minimum of space.

Equipped with a digital display of drilling depth and rotation speed, it combines working comfort and wide spindle passage. To reduce manufacturing time, this model is available with a 2-axis position display.

The advantages of the Proficenter 700 BQV :

• Speed ​​control by electronic dimmer for optimum adaptation to the workpiece
• Standard with turning bar for longitudinal feed and automatic traverse
• Prismatic bench with large surface area, inductively hardened and ground
• Manufacture according to Bernardo quality requirements
• Extended applications thanks to tilting milling head
• Milling head with digital display of spindle stroke and rotational speed
• Movable doll adjustable along the x-axis
• Standard with left / right rotation of the milling spindle
• Precise positioning of the milling spindle by crank
• Standard with 38 mm spindle passage for machining large shaft diameters

Technical specifications of Proficenter 700 BQV lathe and milling machine :

Metal lathe :

• Warehouse: 700 mm
• Height of tip: 150 mm
• Machinable diameter above the bench: 280 mm
• Spindle passage: 38 mm
• Spindle cone: CM 5
• Rotational speed range, variable: 50 - 1000/100 - 1800 rpm
• Longitudinal feeds: (14) 0.07 - 0.65 mm / rev
• Cross feeds: (11) 0.03 - 0.12 mm / rev
• Metric Threads: (18) 0.2 - 3.5 mm
• Inch threads: (21) 8 - 56 tpi
• Backstop sleeve stroke: 85 mm
• Cone of the tailstock sheath: CM 3
• T-slot dimensions of the carriage: 12 mm
• Continuous power S1 100%: 1,1 kW / 230 V
• Power S6 40%: 1.5 kW / 230 V

MILLING MILLER :

• Max drilling diameter: 20 mm
• Max surfacing capacity: 63 mm
• Max milling capacity: 20 mm
• Gooseneck: 170 mm
• Spindle speed: 50 - 2250 rpm
• Spindle cone: CM 2
• Adjustable milling head: -90 ° to + 90 °
• Milling head height adjustment: 260 mm
• Continuous power S1 100%: 0,60 kW / 230 V
• Power S6 40%: 0.90 kW / 230 V
• Machine Dimensions (W x D x H) *: +1380 x 640 x 1020 mm
• Total weight approx. : 298 kg

The Bernardo Proficenter 700 BQV milling cutter comes with :

• 3-jaw chuck DK11-160 mm
• 160 mm flange
• Chuck with key 1 - 13 mm / B 16
• Chuck mounting shaft CM 2 / B 16
• Fixed counter-points
• Interchangeable sprockets
• 4-position turret
• Torque limiter
• Micrometric longitudinal guide
• Transverse and upper trolley
• Pulling M10
• Digital depth indicator
• Digital speed indicator
• Chuck protection
• Screw protector
• Rear cover
• Service tools
