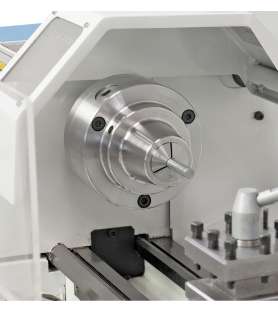

General description of the Bernardo Proficenter 700 Top metal lathe and milling machine with 2-axis digital display:

• Ideal for machining steel, non-ferrous materials and plastics
• Standard with electronic speed variator
• High concentricity accuracy of the hardened spindle nose (≤ 0.009 mm)
• P5 grade adjustable tapered bearing spindle
• Standard with slide bar for automatic longitudinal and transverse feed
• Solid frame with induction hardened and ground bench slide
• Digital display of spindle stroke and rotation speed
• Milling head swivels on both sides for corner drilling, chamfer milling, etc.
• Lowering and raising the spindle by lever, precision adjustment by crank
• DC motor with frequency converter for better efficiency and high torque

Technical characteristics of the Bernardo Proficenter 700 Top metal lathe and milling machine with 2-axis digital display:

Metal lathe

• Between centers: 700 mm
• Center height: 150 mm
• Machinable diameter above the bed: 300 mm
• Spindle passage: 38 mm
• Spindle cone: CM 5
• Rotational speed range, variable: 70 - 380/380 - 2000 rpm
• Longitudinal feeds: (14) 0.07 - 0.65 mm / rev
• Transverse feeds: (11) 0.03 - 0.12 mm / rev
• Metric threads: (18) 0.2 - 3.5 mm
• Inch threads: (21) 8 - 56 tpi
• Tailstock quill stroke: 85 mm
• Tailstock sleeve cone: CM 3
• T-slot dimensions of the carriage: 12 mm
• Continuous power S1 100%: 0.85 kW / 230 V
• Power S6 40%: 1.1 kW / 230 V

Milling machine

• Maximum drilling diameter: 20 mm
• Max face milling capacity: 63 mm
• Max milling capacity: 20 mm
• Gooseneck: 170 mm
• Spindle speed, variable: 50 - 2250 rpm
• Spindle cone: CM 2
• Adjustable milling head: -90 ° to + 90 °
• Milling head height adjustment: 260 mm
• Continuous power S1 100%: 0.60 kW / 230 V
• Power S6 40%: 0.90 kW / 230 V
• Machine dimensions (W x D x H) *: 1380 x 640 x 1020 mm
• Total weight approx. : 298 kg

* without base

The Bernardo Proficenter 700 Top metal lathe and milling machine with 2-axis digital display is delivered with:

• 2-axis digital indicator i200 with LCD screen
• 3-jaw chuck DK11-160 mm
• 160 mm flange
• Key chuck 1 - 13 mm / B 16
• Chuck assembly shaft CM 2 / B 16
• Fixed tailstocks
• Interchangeable sprockets
• 4-position turret
• Torque limiter
• Micrometric longitudinal guide
• Cross and upper carriage
• Frequency converter
• Tension rod M 10
• Digital depth indicator
• Digital speed indicator
• Chuck protection
• Lead screw protector
• Rear casing
• Service tools
