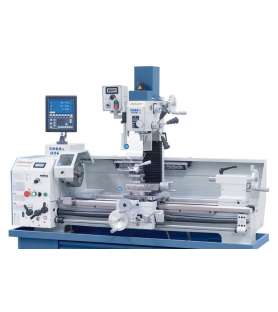

General description of the Bernardo Proficenter 900 Vario metal lathe and milling machine with 2-axis digital display:

• Three-phase motor with frequency converter for superior performance and high torque
• Complete with 38mm spindle bore to accommodate large shaft diameters
• Wide range of applications: precision mechanics, training and education, etc.
• Stepless speed adjustment as part of standard accessories, set speed can be read on digital display
• Power settings are logically organized, easy to control with maximum precision
• Suitable for processing steel, non-ferrous metals and plastics
• Prism bed with large contact surface, induction hardened and polished
• Precise spindle bearing with two adjustable precision tapered roller bearings
• Milling head with digital display of spindle stroke and speed
• The milling head tilts on both sides allowing angular reaming, chamfer milling, etc.

Technical characteristics of the Bernardo Proficenter 900 Vario metal lathe and milling machine with 2-axis digital display:

Metal lathe

• Distance between centers: 900 mm
• Central height: 160 mm
• Distance above the bench: 320 mm
• Spindle bore: 38 mm
• Taper to spindle bore: DIN 55029, D1-4
• Speed ​​range, continuous: 75-500 / 300-2000 rpm
• Longitudinal feed (15): 0.07 - 1.0 mm / rev.
• Transverse feed (15): 0.017 - 0.25 mm / rev.
• Metric thread (18): 0.2 - 3.5 mm
• Inch thread (21): 8 - 56 Gg / 1 "
• Tailstock sleeve stroke: 100 mm
• Tailstock sleeve cone: MT 3
• T-slot size at cross slide: 12 mm
• Motor output power S1 100%: 1.5 KW / 400V
• S6 motor power input 40%: 2.2 kW / 400V

Milling machine

• Max drilling capacity : 20 mm
• Face mill capacity max. : 63 millimeters
• End mill capacity max. : 20 mm
• Spindle / column distance: 170 mm
• Spindle speed, continuous: 50-2250 rpm
• Spindle cone: MT 2
• Tilting grinder head: -90 ° to + 90 °
• Height adjustment of the grinder head: 260 mm
• Motor output power S1 100%: 0.60 kW / 230 V
• Power consumption S6 motor 40%: 0.90 kW / 230 V
• Machine dimensions (W x D x H) *: 1650 x 650 x 1120 mm
• Weight approx. : 303 kilograms

* without support

The Bernardo Proficenter 900 Vario metal lathe and milling machine with 2-axis digital display is delivered with:

• 2-axis ES-12 V digital readout with LCD display
• 3-jaw chuck DK11-160 mm / D4
• Drill chuck 1-13 mm / B 16
• MT 2 / B 16 chuck holder
• Dead centers
• Change speed
• 4-way tool holder
• Safety clutch
• Micrometric longitudinal fence
• Cross slide with top support
• Frequency inverter
• Drawbar M 10
• Digital spindle travel indication
• Digital speed indication
• Wire dial
• LED machine light
• Chuck guard
• Lead screw cover
• Splash guard
• Tools
