General description of the Bernardo PSM2600 spindle moulder-saw combination - 400 V:

• Sliding roller table to simplify the handling of large parts
• Telescopic longitudinal guide with folding stop with fine adjustment as standard

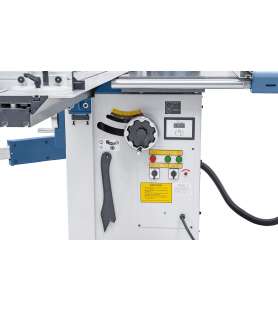

• Quick and easy reading of spindle speed on digital display

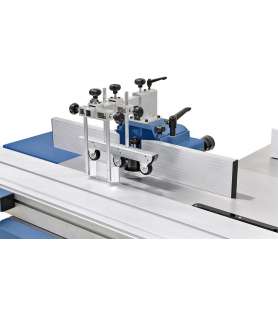

• Robust router hood with precision-adjustable aluminum guide rails
• Large gray cast iron milling block tiltable from 0° to -45°
• Great advantage of this machine: blade diameter 315 mm usable even with the scoring machine
• Machine frame in steel and gray cast iron, non-deformable
• Stable sliding table for passing large, heavy panels without help

The Bernardo PSM2600 spindle moulder-saw combo comes with:

• Pantograph support
• Router hood
• Protection and support device
• Table extensions (rear and side)
• Telescopic guide
• Inciser 90 x 20 x 3 mm / 13 teeth
• Saw blade protector with suction nozzle and flexible
• Miter guide with eccentric flange
• Longitudinal guide with fine adjustment
• Sliding roller table
• Carbide blade 315 x 3.0 x 30 mm / 40 teeth
• Digital milling spindle speed indicator
• Reversing the direction of rotation of the milling spindle
• Pusher
• Service tools

Technical characteristics of the Bernardo PSM2600 router-saw combination - 400 V:

Circular saw

• Table dimensions: 1300 x 380 mm
• Table height: 970 mm
• Table extension: 350 x 310 mm
• Side table extension: 800 x 880 mm
• Sliding roller table: 940 x 580 mm
• Cutting carriage: 2600 x 270 mm
• Sliding table travel: 2600 mm
• Diam. max blade: 315 x 30 mm
• Maximum cutting height at 90° / 45°: 100 / 80 mm
• Cutting width with parallel guide: 1220 mm
• Blade rotation speed: 4500 rpm
• Scoring rotation speed: 8500 rpm
• Inciser: 90 x 20 mm
• ø suction nozzle: 95 mm
• S1 100% continuous power: 3.0 kW (4.0 hp)
• S6 40% power: 4.2 kW (5.7 hp)

Spindle moulder

• Shaft diameter: 30 mm
• Adjustable height: 140 mm
• Tilting spindle: 0° to 45°
• Opening in the table: 200 mm
• Maximum tool height: 110 mm
• Diam. maximum tool width: 180 mm
• Spindle speed: 1800 / 3000 / 6000 / 9000 rpm
• S1 100% continuous power: 2.8 kW (3.8 hp)
• S6 40% power: 3.9 kW (5.3 hp)
• Voltage: 400 V
• Machine dimensions (L x D x H): 2600 x 2900 x 1260 mm
• Weight approx. : 440 kg
