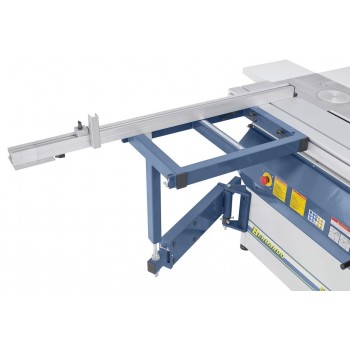

The Bernardo FK250F combined spindle moulder saw with 1200 mm trolley is ideal for ambitious do-it-yourselfers!

Thanks to its complete basic equipment (scoring machine, 3 spindle speeds, format table, etc.), the user benefits from an optimal price-quality ratio.

Advantages of the Bernardo FK250F combined spindle moulder saw:

• Extendable telescopic guide, to be mounted on the pantograph support at the front or at the rear
• Stable sliding table for passing large panels unaided
• Large gray cast iron table for vibration-free work
• Standard milling block with 3 speeds (3500 / 5500 / 7000 rpm)
• Precise and easy to maneuver format table with hardened prismatic guide
• Adjustment of the saw by ergonomic wheels
• With telescopic arm and longitudinal sliding table
• Milling guide with fine adjustment on both sides
• Scorer with blade included

Technical characteristics of the Bernardo FK250F combined spindle moulder saw:

Tenoning spindle moulder:

• Cast iron table dimensions: 1045x300 mm
• With lacquered sheet extension: 1045x500 mm
• Work surface dimensions: 1045x800 mm
• dia. of the well: 140 mm
• Dia max of the tools in the casing: 220 mm
• dia. shaft x length: 30 x 100 mm
• 3 speeds by pulleys rpm: 3500-5500-7000

Sawing:

• Aluminum trolley: 1200X240 mm
• Work surface dimensions: 1200x1040 mm
• Cast iron table dimensions: 1045x300 mm
• Trolley frame dimensions: 600x410 mm
• Extendable ruler: up to 2 m
• Cutting width at the guide: 820 mm
• Blade stroke stroke: 1200 mm
• Blade diameter: 250 mm
• Scorer: 90 mm
• Cutting height at 45° and 90°: 42 and 60 mm
• Working height: 850mm
• Blade speed rpm: 3500
• Scorer speed rpm: 6700

Motors for each operation:

• 230V motor power: 2 x 2.2 KW - 3 HP
• Weight: 255kg

Machine identical to the model Jean l'ébéniste TS1200i.

Important Probois recommendation for many woodworking machines:

Before starting, always check the inside of your machine, see if the belts are fitted correctly, tighten the bolts, etc... because the various transports cause vibrations.

Always use a 2.5² wire size extension cord

The extension cord must not exceed 10 meters and must not be rolled up

The use of drums, triplets or multi-plugs is PROHIBITED

Have a standard electricity meter with neutral and earth

Always work with a chip extractor for your health and for the guarantee of the machine

Always work with guards in place

Do not work with blunt or blunt tools as this may damage the internal mechanism.
