The Holzmann KF315VF combined router saw with 2600 mm carriage with an XL cutting capacity!

This machine makes it possible to work large pieces of wood with ease and precision, its table extension and its guide are folding for easy storage.

Advantages of the Holzmann KF315VF combined spindle moulder saw with 2600 mm carriage:

• Very solid parallel guide with easy movement and quick anchoring.
• Adjustment of the height of the blade and the scorer with inclination.
• Gray cast iron table with rear and right extension and support.
• Telescopic ruler.

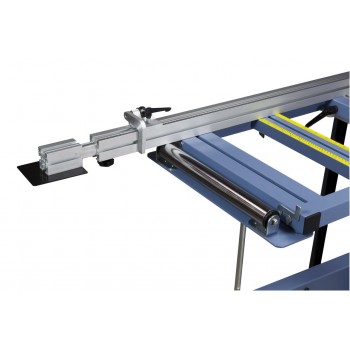

• Roller on the trolley frame for more convenient work.
• “XL” cutting capacity between blade and guide of 1260 mm.
• High quality saw unit with scoring unit.
• High quality protection of the spindle moulder and pressers with fine adjustment.
• 4 rotational speeds of the standard spindle moulder.
• Electronic spindle moulder speed indication by LED.
• diameter max. tool length 200 mm, convenient shaft adjustment by hand wheel.
• Sanding sleeves.
• 45º saw blade tilt

Important Probois recommendation for many woodworking machines:

Before starting, always check the inside of your machine, see if the belts are fitted correctly, tighten the bolts, etc... because the various transports cause vibrations.

Always use a 2.5² wire size extension cord

The extension cord must not exceed 10 meters and must not be rolled up

The use of drums, triplets or multi-plugs is PROHIBITED

Have a standard electricity meter with neutral and earth

Always work with a chip extractor for your health and for the guarantee of the machine

Always work with guards in place

Do not work with blunt or blunt tools as this may damage the internal mechanism.

Technical characteristics of the Holzmann KF315VF combined spindle moulder saw with 2600 mm carriage:

CIRCULAR SAW

• diameter max. of the blade: 315 mm
• Rotation speed: 4500 rpm
• Max cutting height 90° / 45°: 100 mm / 80 mm
• Ø of the scorer: 100 mm
• Scoring blade rotation speed: 8500 rpm
• Max cutting length (with scorer): 2700 mm
• Maximum cutting width at parallel guide: 1330 mm
• Table height: 850mm
• Dimensions of the table: 860 x 890 mm
• Table extension: 800 x 440 mm / 500 x 450 mm
• Sliding table: 2600 x 270 mm
• Sliding table extension: 750 x 590 mm
• Miter fence folded / unfolded: 1230-2270 mm

SPINDLE MOULDER

• Shaft diameter: 30mm
• Rotation speed: 1800/3000/6000/9000 rpm
• Spindle displacement: 100 mm
• Max height of the workpiece: 100 mm
• Table opening: 190 mm
• diameter max. of the tool in the well: 180 mm
• Max diameter of the tool in the casing: 200 mm
• Miter gauge (left / right): 360 x 120 mm

GENERAL

• Suction nozzle diameter: 100 mm
• Circular saw motor power S1 (100%) / S6: 3.8 kW / 5.1 kW
• Spindle moulder motor power S1 (100%) / S6: 2.8 kW / 4.0 kW
• Voltage: 230 V
• Net weight: 480 kg
• Gross weight: 500 kg

The Holzmann KF315VF combined spindle moulder saw with 2600 mm carriage comes with:

• Blade: 315mm
• Scoring blade: 100 mm
• Sanding tools
• corner guide

IMPORTANT FOR THE DELIVERY AND COMMISSIONING OF XL MACHINES!

XL machines are shipped by 38 ton truck only. The place of delivery must imperatively be planned so that this type of truck can approach and maneuver easily. If access is only possible by 19-tonne truck (at least), we must be informed beforehand so that a solution can be found. If this incurs additional delivery charges, these will need to be paid prior to dispatch. Start-up: The prices do not include assembly or electrical installation, which must be done by a professional in order to avoid any damage to the motors and electrical circuits of the machine that the warranty cannot cover.
