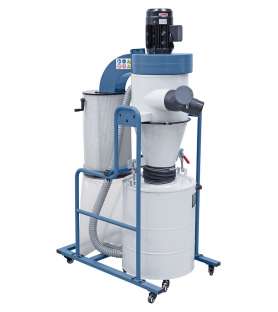

Cyclone-extractor Bernardo RLA1800 - 400V

1,360.00 € Tax included

Including €2.50 for ecotax

Reference: BRLA1800-400V

Thanks to its double chip filtration (filter cartridge or cyclone), the clean air extraction system RLA 1800 improves the available power of your woodworking machines and thus keeps the workplace clean and free of chips. In addition, this model can be used for vacuuming plastics, paper dust, etc.

Quantity
Delivery time 12-15 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

General description of the Bernardo RLA1800 suction system:

  • Standard with polyester fine dust filter cartridge, residual dust content 0.1 mg/m³
  • Powerful suction thanks to the aerodynamic steel rotor
  • Standard with filter cartridge, cleaning brush included for the removal of fine dust.
  • Powerful motor ensures constant suction
  • Solid sheet steel housing, reduces static load compared to plastic enclosures
  • Adapter included for simultaneous operation of two machines
  • Fan with steel blades resistant to small splinters of wood sucked in
  • Surface protected from scratches thanks to high-quality powder coating

Technical characteristics of the Bernardo RLA1800 suction system:

  • Suction rate: 1150 m3/h
  • Filtration area: 2.6 m2
  • Maximum depression: 2000 Pa
  • Ø suction nozzle: 1x 125 mm / 2x 100 mm
  • Chip bag: Ø 360 x 700 mm
  • Chip bag volume: 56 l
  • Dust container volume: 95 l
  • Idle speed: 2850 rpm
  • Dust bin volume: 87 dB
  • Continuous power S1 100%: 1.5 kW (2.0 hp) / 400 V
  • Power S6 40%: 2.1 kW (2.8 hp) / 400 V
  • Machine dimensions (W x D x H): 1120 x 630 x 1800 mm
  • Weight (approx.): 70 kg

The Bernardo RLA1800 vacuum system comes with:

  • dust bag
  • Filter cartridge
  • Removable drip tray
  • rolling mechanism
