General description of the Bernardo RLA1900 cyclone-extractor :

• Powerful motor ensures constant suction
• Solid sheet steel housing, reduces static load compared to plastic enclosures
• Mobile clean air extraction devices for small and medium-sized businesses
• Standard with polyester fine dust filter cartridge, residual dust content 0.1 mg/m³
• Powerful suction thanks to the aerodynamic steel rotor

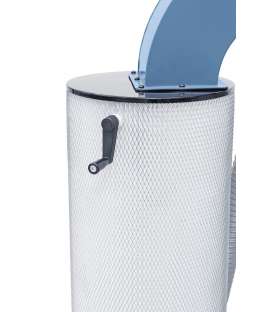

• Standard with filter cartridge, cleaning brush included for the removal of fine dust.
• Adapter included for simultaneous operation of two machines
• Fan with steel blades resistant to small splinters of wood sucked in
• Surface protected from scratches thanks to high-quality powder coating

Technical characteristics of the Bernardo RLA1900 cyclone-extractor :

• Suction rate: 1350 m3/h
• Filtration area: 3.5 m2
• Maximum depression: 2600 Pa

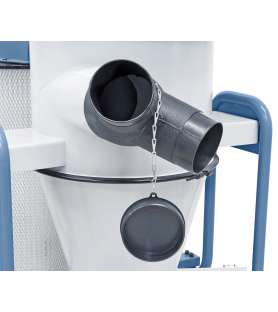

• Ø suction nozzle: 1x 125 mm / 2x 100 mm
• Chip bag: Ø 360 x 500 mm
• Chip bag volume: 36 l
• Dust bag volume: 95 l
• Idle speed: 2850 rpm
• Dust bin volume: 80 dB
• Continuous power S1 100%: 2.2 KW (3.0 hp) / 400 V
• Power S6 40%: 3.0 kW (4.2 hp) / 400 V
• Machine dimensions (W x D x H): 1110 x 640 x 1820 mm
• Weight (approx.): 80 kg

The Bernardo RLA1900 cyclone-extractor comes with:

• dust bag
• Filter cartridge

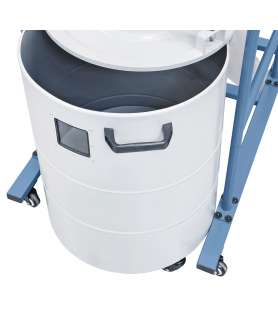

• Removable drip tray
• rolling mechanism
