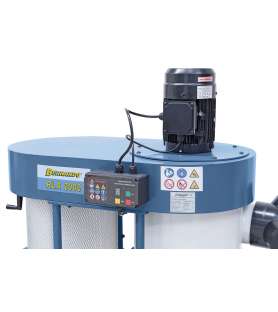

General description of the Bernardo RLA2000 cyclone-extractor :

• Simple and quick replacement of the shavings bag thanks to the removable collection tray
• Standard with polyester fine dust filter cartridge, residual dust content 0.1 mg/m³
• Fan with steel blades resistant to small splinters of wood sucked in
• Possibility of automatic setting of the start and stop of the device thanks to a timer
• Mobile clean air extraction units for small and medium-sized businesses
• Adapter included for simultaneous operation of 3 machines
• Surface protected from scratches thanks to high-quality powder coating
• Remote control included for switching the device on and off
• Filling level inspection window

Technical characteristics of the Bernardo RLA2000 cyclone-extractor :

• Suction rate: 1350 m3/h
• Filtration area: 2.6 m2
• Maximum depression: 2000 Pa
• Ø suction nozzle: 1x 150 / 3x 100 mm
• Chip bag: Ø 360 x 700 mm
• Chip bag volume: 65 l
• Dust container volume: 95 l
• Idle speed: 2850 rpm
• Dust bin volume: 84 dB
• Continuous power S1 100%: 1.5 kW (2.0 hp) / 400 V
• Power S6 40%: 2.1 kW (2.8 hp) / 400 V
• Machine dimensions (W x D x H): 1120 x 650 x 1740 mm
• Weight (approx.): 85 kg

The Bernardo RLA2000 cyclone-extractor comes with:

• dust bag
• Filter cartridge
• Remote control
• Adjustable timer
• Removable drip tray
• rolling mechanism
