General description of the Bernardo RLA2700 cyclone-extractor :

• Adapter included for simultaneous operation of 3 machines
• Automatic filter cleaning for constant airflow
• Simple and quick replacement of the shavings bag thanks to the removable collection tray
• Easy control of the minimum flow thanks to the standard pressure gauge
• Fan with steel blades resistant to small splinters of wood sucked in
• Surface protected from scratches thanks to high-quality powder coating
• Standard with polyester fine dust filter cartridge, residual dust content 0.1 mg/m³

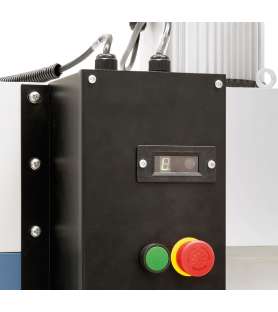

• Remote control included for switching the device on and off
• Possibility of automatic setting of the start and stop of the device thanks to a timer
• Filling level inspection window

Technical characteristics of the Bernardo RLA2700 cyclone-extractor :

• Suction rate: 2700 m³/h
• Filtration area: 2.84 m²
• Maximum depression: 2800 Pa
• Ø suction nozzle: 3 x 100 mm
• Chip bag: Ø 621 x 650 mm
• Chip bag volume: 190 l
• Dust container volume: 138 l
• Idle speed: 2850 rpm
• Dust bin volume: 74 dB
• Continuous power S1 100%: 3.0 kW (4.0 hp) / 400 V
• Power S6 40%: 4.2 kW (5.7 hp) / 400 V
• Machine dimensions (W x D x H): 1100 x 880 x 1800 mm
• Weight (approx.): 150 kg

The Bernardo RLA2700 cyclone-extractor comes with:

• Chip bag
• Filter cartridge for fine dust with automatic cleaning
• Remote control
• Adjustable timer
• Removable drip tray
• rolling mechanism
