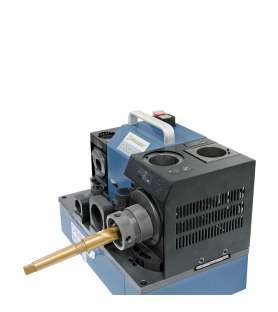

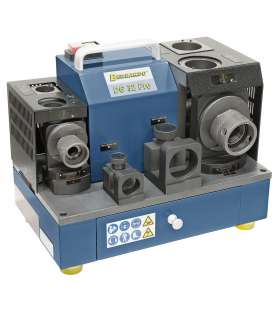

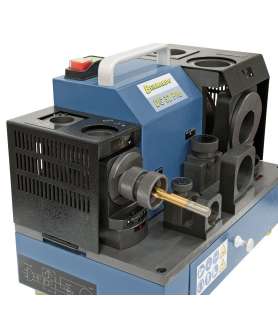

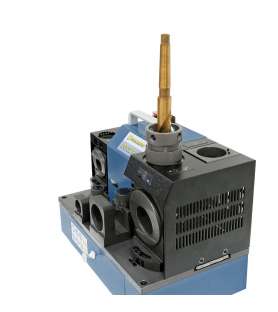

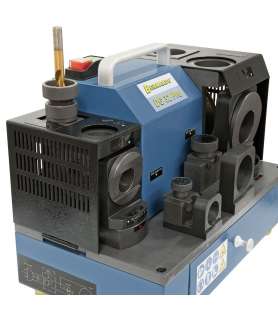

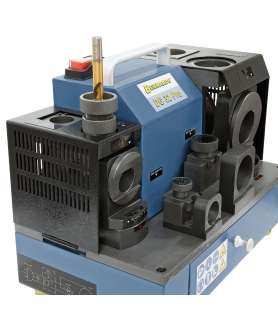

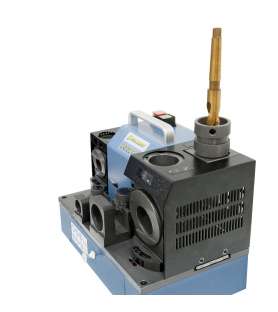

Bernardo DG32PRO twist drill bit grinder with dual function (drill bits 2 to 32 mm)

1,499.00 € Tax included

Including €0.82 for ecotax

Reference: BDG32PRO

The Bernardo DG 32 PRO drill sharpener is ideal for grinding HSS, carbide, cobalt spiral drills from 2 to 32 mm. The advantage of this model is the possibility of rear sharpening of the cutting surfaces, which guarantees a perfect drilling result.

Quantity
Delivery time 12-15 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

The Bernardo DG32PRO sharpener guarantees efficient sharpening of helical drills!

  • Including sharpening device, i.e. better centering of the drill tip on the workpiece and a reduction in the required feed force

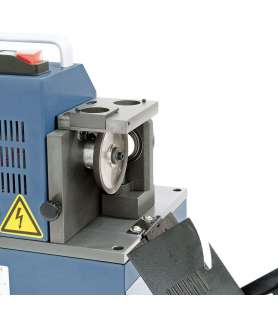

  • Additional station for rear sharpening of cutting edges (free angle)
  • Set of 30 ER 40 collets included as standard, also allowing the clamping of intermediate sizes. For sharpening HSS, carbide or TiN-coated twist drills from 2 to 32 mm
  • Precision ball bearing rotor for very quiet operation
  • Good balance and rubber feet for vibration-free operation
  • Adjustable tip angle for all common drill bits

Technical characteristics of the DG32PRO metal tool sharpener :

  • Drill diameter: 2 - 32 mm
  • Stitch angle: 90° - 135°
  • Speed: 4800 rpm
  • Motor power: 0.25 kW
  • Voltage: 230V
  • Length: 350mm
  • Width: 210mm
  • size: 305 mm
  • Weight: 32 kg

The Bernardo DG32PRO sharpener comes with :

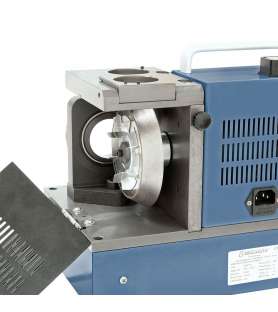

  • SDC diamond grinding wheel

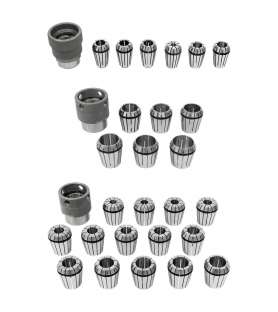

  • Collet set ER 20, 3 – 12 mm, 10 pieces (3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 mm)
  • Collet set ER 40, 13 – 32 mm, 20 pieces (13 / 14 / 15 / 16 / 17 / 18 / 19 / 20 / 21 / 22 / 23 / 24 / 25 / 26 / 27 / 28 / 29 / 30 / 31/32mm)
  • ER 20 or ER 40 collet holder
