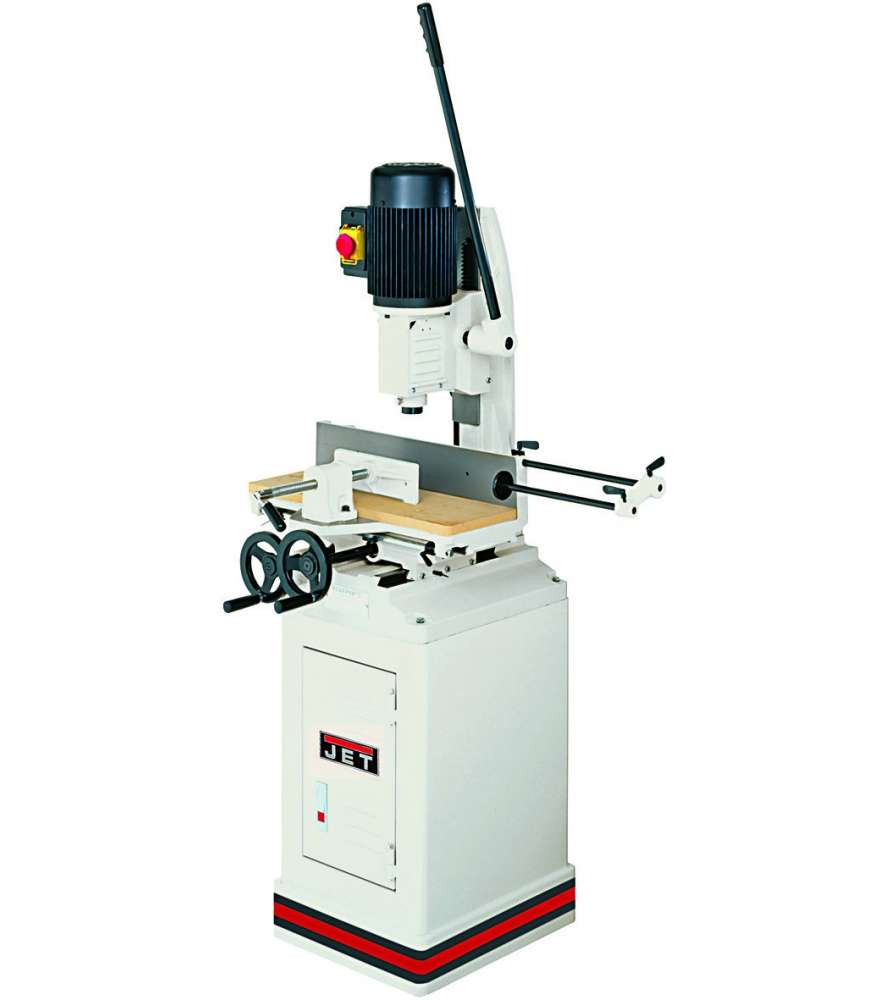

General description of the JET 719A chisel mortiser :
- Height adjustment rack combined with dovetail guide and gas pressure compensation cylinder
- End stops for precision series production
- Clamping arrangement of workpieces with quick adjustment
- Powerful 1hp engine
- Head tilts 180° which also allows locks to be drilled into a finished door
The JET 719A chisel mortiser is delivered with :
- 13 mm chuck
- End stops
- Closed chassis with storage
- MDF wood table top
- Drill bit adapter (5/8", 3/4", 13/16", and 1-13/16")
- Workpiece clamping device
Technical characteristics of the JET 719A chisel mortiser :
- P1-M motor power: 1300 W / S6 40%
- P2-M motor power: 750 W / S1 100%
- Side stops: No
- Max capacity drill chuck: 25 mm
- Toothed chuck capacity: 13 mm
- Max height parts: 195 mm
- Max. stop projection : 100mm
- Spindle rotation speed: 1450 rpm.
- Drilling: 200 mm
- Max stroke of left/right chuck: 400 mm
- Max stroke of the front/rear chuck: 100 mm
- Table size: 180 x 520 mm
- Guide size: 90 x 520 mm
- Dimensions: 550 x 550 x 1880 mm
- Net weight: 105.00 kg
Video of the JET 719AS chisel mortiser :
JET-719A
