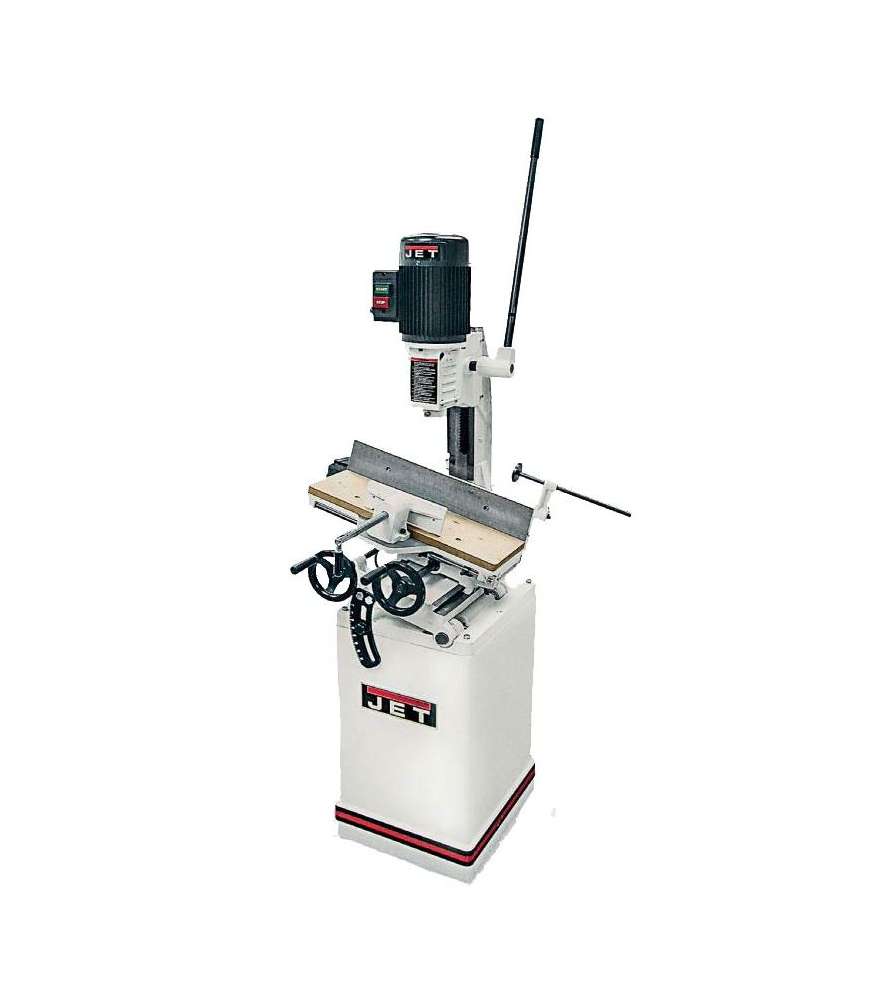

General description of the JET 719-AS tilting chisel mortiser :

• Combined rack and pinion height adjustment with dovetail guide and pressure compensation cylinder
• End stops for precision series production
• Powerful 1 HP motor
• 180° tilting head, which also allows you to drill locks in a finished door
• With 35° table tilt

The JET 719-AS tilting chisel mortiser :

• 13mm chuck
• End stops
• Closed frame with storage
• MDF wood table top
• Adapter for bits (5/8”, 3/4”, 13/16” and 1-13/16”)
• Workpiece clamping device

Technical characteristics of the JET 719-AS tilting chisel mortiser :

• Motor power P1-M: 1300 W / S6 40%
• Motor power P2-M: 750 W / S1 100%
• Side stops: No
• Max capacity drill chuck length: 25 mm
• Toothed chuck capacity: 13 mm
• Max height pieces: 195mm
• Max height rooms without table -
• Max. stop protrusion : 100mm
• Spindle rotation speed: 1450T/min.
• Drilling: 200mm
• Max left/right chuck stroke: 400 mm
• Max front/rear chuck stroke: 100 mm
• Table size: 180 x 520 mm
• Table swivel: 0-35° right
• Guide dimension: 90 x 520 mm
• Dimensions: 550 x 550 x 1880mm
• Weight: 125kg
