Bernardo ZSM500 Cylinder Sander is ideal for quick and easy sanding of wood parts!

Perfect sander for the handyman and the informed amateur wishing to equip his workshop with a sanding machine for frames, doors, etc. Possibility of doubling the useful width of the machine by working in two passes by removing the side support!

The advantages of the Bernardo ZSM500 cylinder sander:

• Asynchronous motor 1100W
• Continuous feed speed
• Cast steel frame
• Drive of the piece of wood on a 475 mm wide high adhesion coating and a conveyor system allowing the variation of the feed.
• Perfectly balanced and self-cooling aluminum cylinder.
• Quick release trigger for changing the belt.
• Reinforcement to ensure the parallelism of the roller in firm calibration
• The sander is delivered with: The base with wheels, the infeed and outfeed table, a 100 grit abrasive belt, key, and instructions.

Technical characteristics of the Bernardo ZSM500 cylinder sander:

• Max sanding width: 400 mm (800 mm)
• Mini sanding length: 60 mm
• Min / max part thickness: 5 - 80 mm
• Table dimensions (L x W): 475 x 425 mm

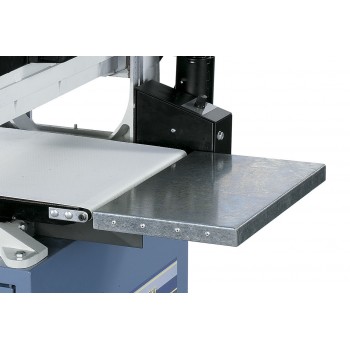

• Table extension on both sides (L x W): 245 x 425 mm
• Working height: 690 mm
• Sanding cylinder: ø 130 x 410 mm
• Continuous feed: 0.5 - 3 m / min
• Rotation speed: 1420 rpm
• ø suction nozzle: 100 mm
• Engine power: 1.1 kW (1.5 hp)
• Voltage: 400V
• Machine dimensions (W x D x H): 860 x 1030 x 1270 mm
• Weight (approx.): 96 kg

For an equivalent belt sander at a lower cost see the following model: Jean l'ébéniste SPBL405
