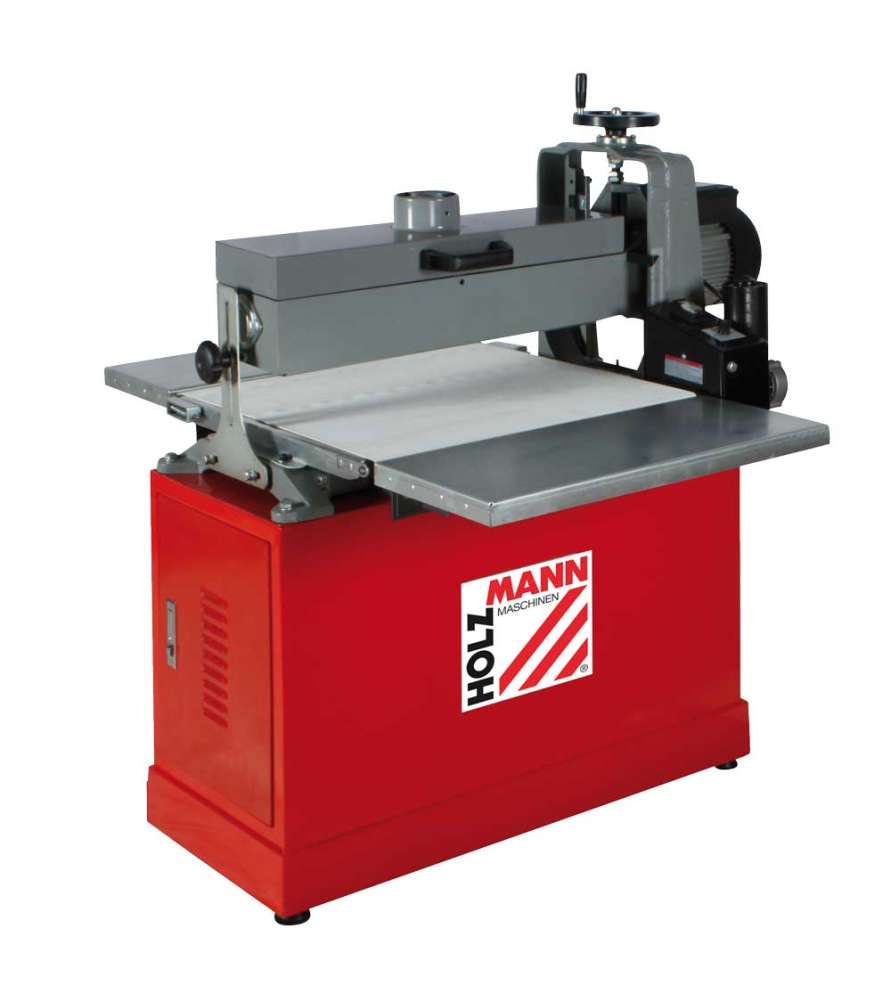

The drum sander with cylinder Holzmann ZS560U machine with a powerful quiet and silent 1500W asynchronous motor!

This machine is the same as the Bernardo ZSM560 cylinder sander , only the base is different!

The advantages of the sander cylinder Holzmann ZS560U:

• Cast iron frame.
• Metal storage cabinet with lockable shelf and door
• Training of the piece of wood on a high adhesion coating of width 560 mm and a conveyor system allowing the variation of the advance.
• Aluminum cylinder perfectly balanced and self-cooling.
• Quick lock gate for tape change.
• Reinforcement to ensure the parallelism of the roll Essential in firm calibration, ie 560 mm

The machine ships with:

The storage cabinet, the entry and exit table, an abrasive belt gr.80, key, and instructions.

Technical specifications of the sander cylinder Holzmann ZS560U:

• Power: 1500 W - 2 HP in 230 V
• Carpet advance power: 50 W
• Sound power: 78 db
• Speed ​​of rotation: 1440rpm
• Cylinder dimension: 560 x dia 132 mm
• Closed calibration sanding width: 560 mm
• Open calibration sanding width: 1100 mm by turning over
• Min. : 5 mm
• Max. : 75 mm
• Feed rate: 0 to 3 m / min
• Suction outlet: 100 mm
• Weight: 140 kg
