This Bernardo ZSM405 cylinder sizing sander is especially popular with ambitious do-it-yourselfers!

This machine is compatible with commercial abrasive belts and has a powerful drive motor for optimum results!

The advantages of the sander Bernardo ZSM405:

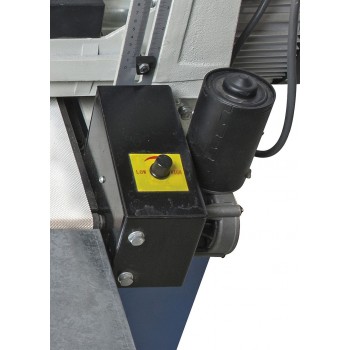

• Infinitely adjustable conveyor feed speed
• Precise height adjustment of sanding unit with graduation
• Adaptation of the sanding unit to the thickness of the workpiece by crank with graduation
• Standard with vacuum connection nozzle, for always clean workstation
• By removing the lateral support, the working width of the machine can be doubled by working in two passes, e.g. for executives, etc.

The machine is delivered with: 100 grit abrasive belt, table extensions on both sides and a base with chassis with wheels

Technical specifications of the sander Bernardo ZSM405:

• Maximum sanding width: 405 mm (810 mm)
• Minimum sanding length: 60 mm
• Thickness of the pieces min / max: 5 - 80 mm
• Table dimensions (L x W): 470 x 425 mm
• Extension table on both sides (L x W): 245 x 425 mm
• Working height: 695 mm
• Sanding cylinder: ø 130 x 410 mm
• Continuous feed: 0.5 - 3 m / min
• Speed ​​of rotation: 1420 rpm
• ø suction nozzle: 100 mm
• Engine power: 1.1 kW (1.5 hp)
• Voltage: 230V
• Machine dimensions (W x D x H): 950 x 1030 x 1290 mm
• Weight (approx.): 86 kg - Gross weight: 102 kg
