General description

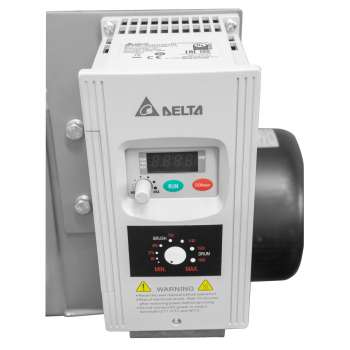

• A frequency controlled sanding drum allows any rpm adjustment according the used sanding drum type.

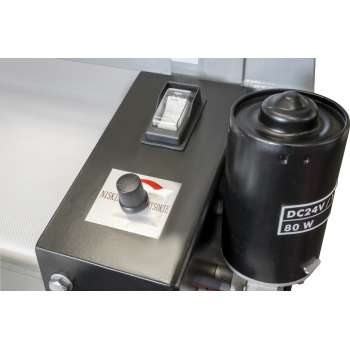

• stepless feeding controlled by potentiometer
• front and back – table extension
• stable cast iron construction of the sanding device
• full cover body with cabinet
• carpet tension can be adjusted via spring system
• commercial sanding belts can be used
• optionally sanding drums suitable for that machines available
• Brushing function with a suitable roller (ZS560FU_DSW)

technical details

• motor power s1 in W : 1500
• voltage : 230V / 50Hz
• table size in mm : 592x505
• table extension in mm : 582x245
• suction port in mm : 100
• min. workpiece thickness in mm : 5
• max. workpiece thickness in mm : 80
• belt dimensions in mm : 3280x78
• feeding : 0-3 m/min
• max. sanding width in mm : 560
• drum diameter in mm : ø132 x 565
• drum speed in min-1 : 0-1800
• sound power level in dB(A) : 96
• sound pressure level in dB(A) : 87
• gross weight in kg : 154
• net weight in kg : 118
• packaging width in mm : 690
• packaging length in mm : 1.100
• packaging height in mm : 1.240
