Double Drum Sander JET DDS-225 - 400V

5,685.00 € Tax included

Including €2.50 for ecotax

Reference: JET-DDS225-400V

The JET DDS-225 sander is a robust and powerful machine offering the discerning user and the craftsman all the advantages of a wide belt sander in a minimum of space.

Quantity
Factory Shipping, delivery time 5-8 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

Seriously and precisely manufactured, it is equipped with 2 powerful and robust sanding cylinders!

The latter allowing the mixing of abrasives (roughing and finishing). The advance of the wood is made by a belt driven by a powerful gear motor! 2 wood feed speeds, 2m or 3m/min allow both series and precision work. The JET double cylinder calibrating sander has some pleasant surprises in store for you.

General description of the JET DDS-225 double cylinder sander:

  • The training mat is mounted with 4 oversized bearings.
  • The 2-speed drive gear makes it possible to adapt to different woods.
  • Double sanding cylinder Ø 152 mm, length 635 mm.
  • Micrometric thickness adjustment. Minimum thickness of 0.8 mm.
  • Abrasive belt in rolls of 75 or 100 mm width.

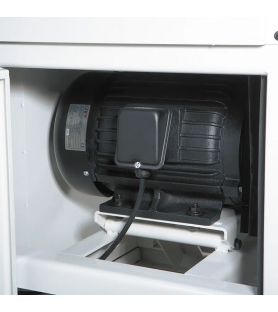

  • 5 hp three-phase motor.
  • The cylinders are coated with hard rubber for an optimal working result.
  • Double suction nozzle Ø 100 mm.

The JET DDS-225 twin drum sander comes with:

  • 2 x 100mm suction nozzles
  • Closed plinth
  • 80 grit sanding belt
  • 100 grit sanding belt

Technical characteristics of the JET DDS-225 double drum sander:

  • Power S6 / S1 400 V: 5.5 / 3.7 HP
  • Max thickness : 133mm
  • Min thickness : 0.8mm
  • min length : 230mm
  • Max width : 635mm
  • Sanding cylinder ø: 2 x ø152 mm x 635 mm
  • Rotation speed: 1400 rpm
  • Sanding belt width: 75 mm or 100 mm
  • Feed rate: 2 or 3 m/min.
  • Suction nozzle: 2 x ø100 mm
  • Dimensions (LxWxH): 1090x1120x1090mm
  • Weight: 332 kg
