A dust collector is essential in woodworking and carpentry, it sucks dust and wood chips, protects your machine ensuring its guarantee and above all protects the health of the user!

But how to make the right choice of dust collector?
The more the dust collector has a high suction flow, the better it performs. The higher the airflow, the more suitable and powerful the motor is.
For small models of woodworking machines such as planer-jointers up to 200 mm wide, small band saws, etc. .. the choice can be made on an entry-level vacuum cleaner.
On the other hand, the larger the size of the machines on which the dust collector is to be connected, the more it will be necessary to choose a dust collector with a high power. suction. For example, a planer-jointer with a width of 300 mm produces large wood chips and in large quantities, if the dust collector is undersized, unsuitable, he will not be able to extract what the machine asks him to do. the stuffing ensured, let alone the damage to the two machines!

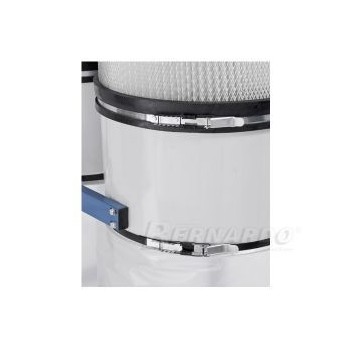

Take a good look at the characteristics of this dust collector Bernardo DC700!

General description :

• Usable with wood, plastic, polystyrene, etc.
• Increased ease of use thanks to large chip bags
• Fan with steel blades resistant to small pieces of wood sucked
• High efficiency thanks to optimized shape
• Net increase in power with the optional filter cartridge
• With adapter to connect four machines simultaneously

Technical specifications of the dust collector Bernardo DC700 :

• Steel turbine
• Filtration: 8.0 m²
• Low pressure max: 2340 pa
• Air suction m3 / hour: 6800
• Fill quantity L: 4 x 190 liters or 760 liters
• Number of suction nozzles and ø mm: 4 x ø 100 - 1 x ø 180 mm
• Decibels: 80
• 400V three-phase motor
• Engine power S6 at 40%: 3.7 KW (5CV)
• Engine power S1 at 100%: 5.1 KW (7CV)
• Speed: 2950 rpm
• Size: 2700 x 582 x 2355 mm
• Weight kg: 89

This dust collector Bernardo DC700 comes with:

• Filter Bag - Receiver Bags
• Traveling wheels
• Instruction Sheet
• Service Keys
