A dust collector is essential in woodworking and carpentry, it sucks dust and wood chips, protects your machine ensuring its guarantee and above all protects the health of the user!

But how to make the right choice of dust collector?
The more the dust collector has a high suction flow, the better it performs. The higher the airflow, the more suitable and powerful the motor is.
For small models of woodworking machines such as planer-jointers up to 200 mm wide, small band saws, etc. .. the choice can be made on an entry-level dust collector.
On the other hand, the larger the size of the machines on which the vacuum cleaner is to be connected, the more it will be necessary to choose a dust collector with a high power. suction. For example, a planer-jointer with a width of 300 mm produces large wood chips and in large quantities, if the dust collector is undersized, unsuitable, he will not be able to extract what the machine asks him to do. the stuffing ensured, let alone the damage to the two machines!

Take note of the characteristics of this dust collector Bernardo DC650CF!

General description :

• Easy change of bags thanks to the quick-release strap
• Powerful suction thanks to the aerodynamic steel rotor
• Standard, filter cartridge with declogging brushes
• Filter cartridge with large filtration surface to improve suction power
• Powerful motor ensuring constant suction

Technical specifications of the dust collector Bernardo DC650CF:

• Capacity: 5310 m³ / h
• Filtering surface: 12,0 m²
• Low pressure max. : 2 340 Pa
• Inlet diameter: 1 x 180 mm
• Input diameter with adapter: 4 x 100 mm
• Volume of the bags: 570 liters (3 x 190 liters each)
• Slow motion: 2.950 rpm
• Sound pressure: 80 dB
• Output motor power S1 100%: 3.7 kW (5.0 hp)
• S6 engine power input 40%: 5.1 kW (7.0 HP)
• Voltage: three-phase 400V / 50 Hz
• Size: 2184 x 582 x 1755 mm
• Weight approx. : 112 kg

The dust collector Bernardo DC650CF comes with :

• 3 FP2 filter cartridges
• Receiving bags
• Adapter 1 x 180 mm / 4 x 100 mm

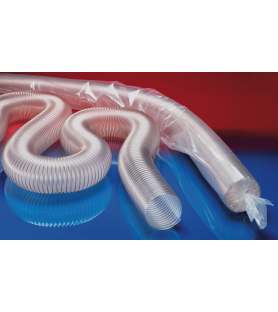

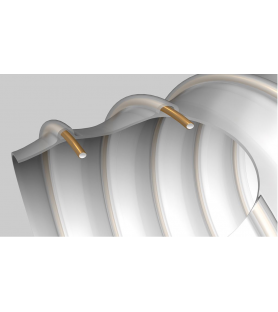

• Supplied without hose diameter 100 mm (see optional)
