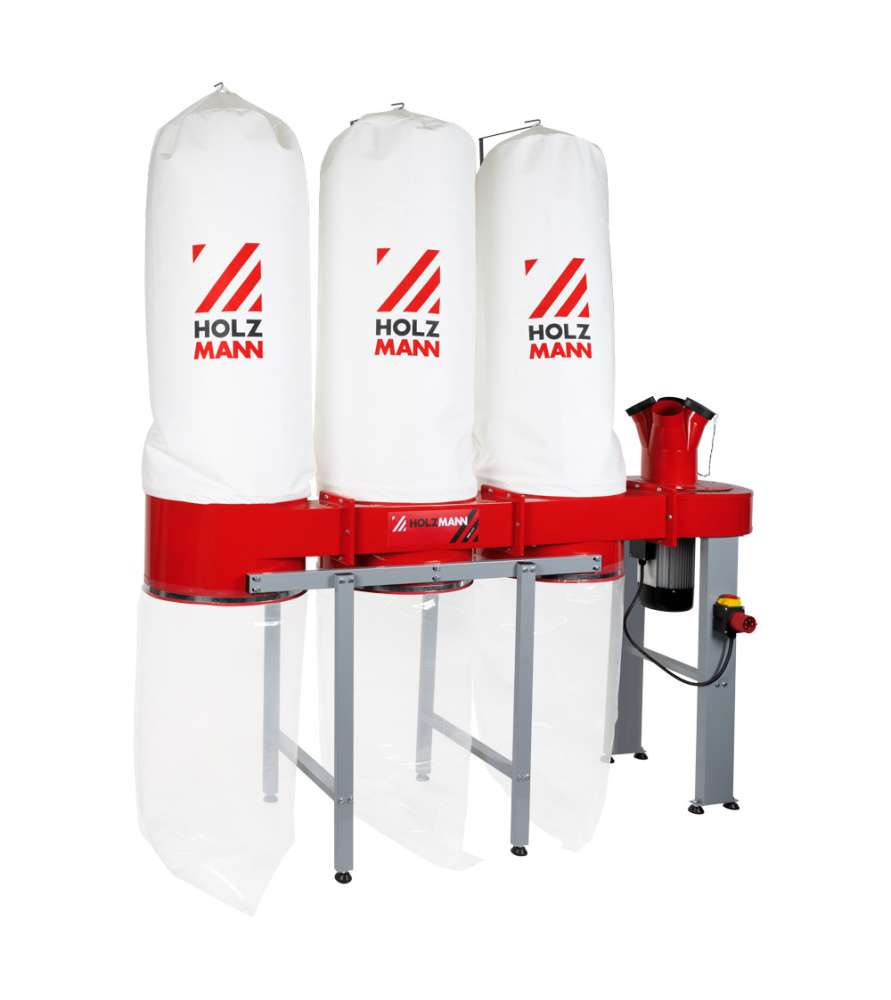

Holzmann ABS4560 Chip Vacuum Cleaner - 400V
  • Holzmann ABS4560 Chip Vacuum Cleaner - 400V
  • Holzmann ABS4560 Chip Vacuum Cleaner - 400V
  • Holzmann ABS4560 Chip Vacuum Cleaner - 400V
  • Holzmann ABS4560 Chip Vacuum Cleaner - 400V

Holzmann ABS4560 Chip Vacuum Cleaner - 400V

965.00 € Tax included

Including €2.50 for ecotax

Reference: HABS4560-400V

The dust collector Holzmann ABS 4560 professional workshop will allow you to connect 4 machines simultaneously! Its 5100W motor power and 4560 m³ / h extraction force make it ideal for small and medium-sized workshops!

Quantity
In stock, delivery time 5-8 working days

  • Totally secure payment! Totally secure payment!
  • Be delivered where you want! Be delivered where you want!
  • 14 days to change your mind! 14 days to change your mind!

A dust collector is essential in woodworking and carpentry, it sucks dust and wood chips, protects your machine ensuring its guarantee and above all protects the health of the user!

But how to make the right choice of dust collector?
The more the dust collector has a high suction flow, the better it performs. The higher the airflow, the more suitable and powerful the motor is.
For small models of woodworking machines such as planer-jointers up to 200 mm wide, small band saws, etc. .. the choice can be made on an entry-level vacuum cleaner.
On the other hand, the larger the size of the machines on which the dust collector is to be connected, the more it will be necessary to choose a dust collector with a high power. suction. For example, a planer-jointer with a width of 300 mm produces large wood chips and in large quantities, if the vacuum cleaner is undersized, unsuitable, he will not be able to extract what the machine asks him to do. the stuffing ensured, let alone the damage to the two machines!

Take note of the features of this dust collector Holzmann ABS4560!

Technical characteristics of this dust collector :

  • Steel turbine
  • Filtration: 6.0 m²
  • Air suction m3 / hour: 4560
  • Fill quantity L: 3 x 160 liters or 480 liters
  • Number of suction nozzles and ø mm: 4 x ø 100 - 1 x ø 180 mm
  • Decibels: 80
  • Power S6 (40%): 5100 W (7CV)
  • Power S1 (100%): 3700 W (5CV)
  • Size: 2184 x 582 x 2330 mm
  • Bag diameter 500mm
  • Bottom bag height 850 mm
  • Fan diameter 360 mm
  • Speed ​​of rotation 2950 rpm
  • Voltage 400V
  • Total height 2330mm
  • Net weight 140kg
  • Gross weight 145kg
  • Packing 710x1180x860mm

The dust collector Holzmann ABS4560 comes with:

  • Filter Bag - Receiver Bags
  • Traveling wheels
  • Instruction manual in English (possibility to send in PDF 1 similar in French) - Service keys
HABS4560-400V
1 Item
